NTN Bearing 24196B belongs to the Spherical Roller Bearings family. The technical tables below show the available dimensions, ratings, speeds and mounting limits for this item.
When requesting a quotation, provide the complete item number, required quantity and operating conditions so Cat Son can verify the configuration.

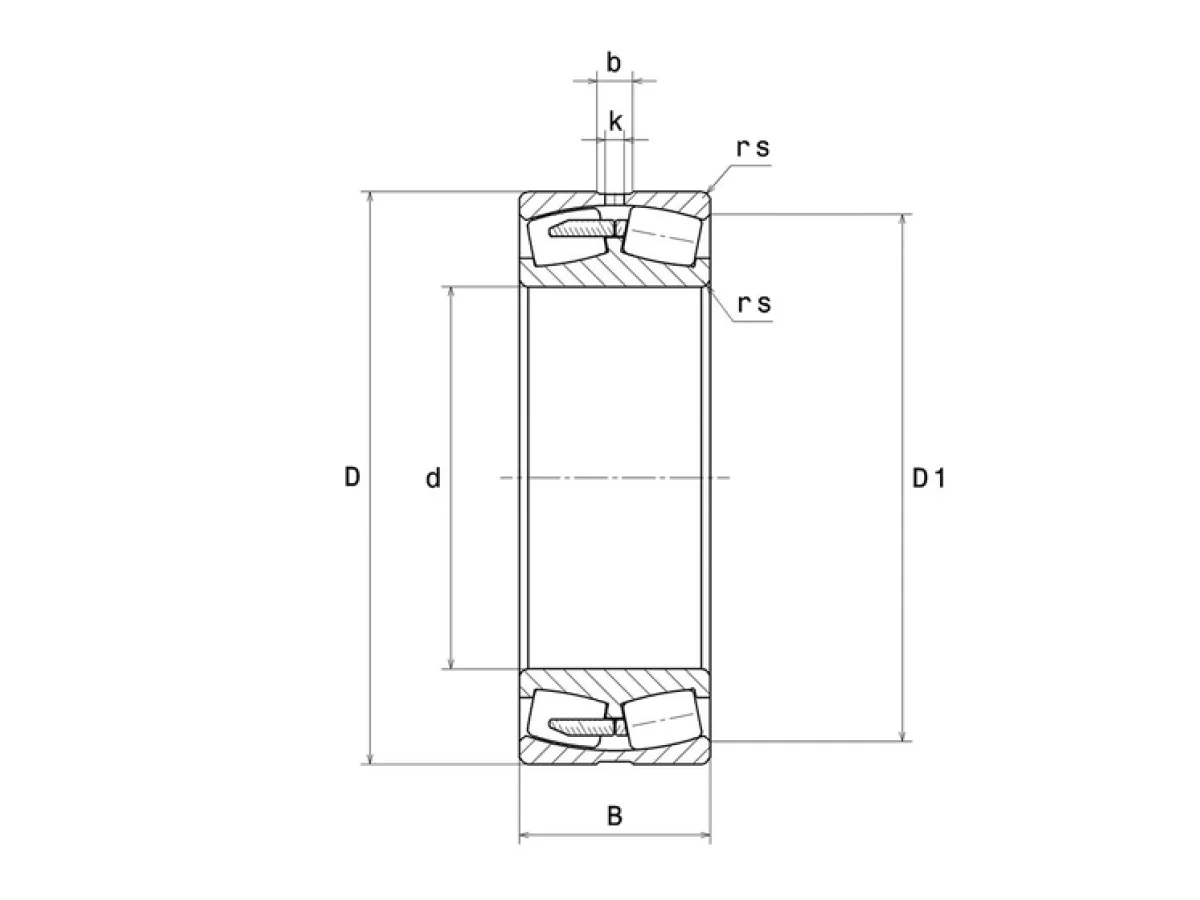

24196B specifications
TECHNICAL SPECIFICATIONS
- Brand / Manufacturer
- NTN
- d - Shaft bore diameter
- 480 mm
- D - Diameter outside
- 790 mm
- B - Width
- 308 mm
- d2 - Diameter rib of inner ring
- 0 mm
- D1 - Diameter rib/groove of outer ring
- 670,7 mm
- rs - Minimum fillet radius
- 7,5 mm
- Number of lubrication holes
- 8
- b - Width of lubrication groove
- 33 mm
- k - Diameter of lubrication hole
- 20 mm
- Bearing clearance
- CN
- Weight
- 600 kg
PRODUCT PERFORMANCE
- C - Basic dynamic load rating
- 8250 kN
- C0 - Basic static load rating
- 15300 kN
- Cu - Fatigue load limit
- 860 kN
- e - Limiting value
- 0.39
- Y0 - Static axial load factor
- 1.7
- Y1 - Lower axial load factor
- 1.74
- Y2 - Upper axial load factor
- 2.59
- N lim - Oil lubrication limiting speed
- 450 tr/min
- N lim - Grease lubrication limiting speed
- 350 tr/min
- Tmin - Minimum operating temperature
- -40 °C
- Tmax - Maximum operating temperature
- 120 °C
LIMITS
- da min - Minimum shoulder diameter IR
- 512 mm
- Da max - Maximum shoulder diameter OR
- 758 mm
- ra max - Maximum fillet radius shaft & housing
- 6 mm
