Images and technical specifications for item NA6908RC3.
PRODUCT INFORMATION
Description and selection guidance

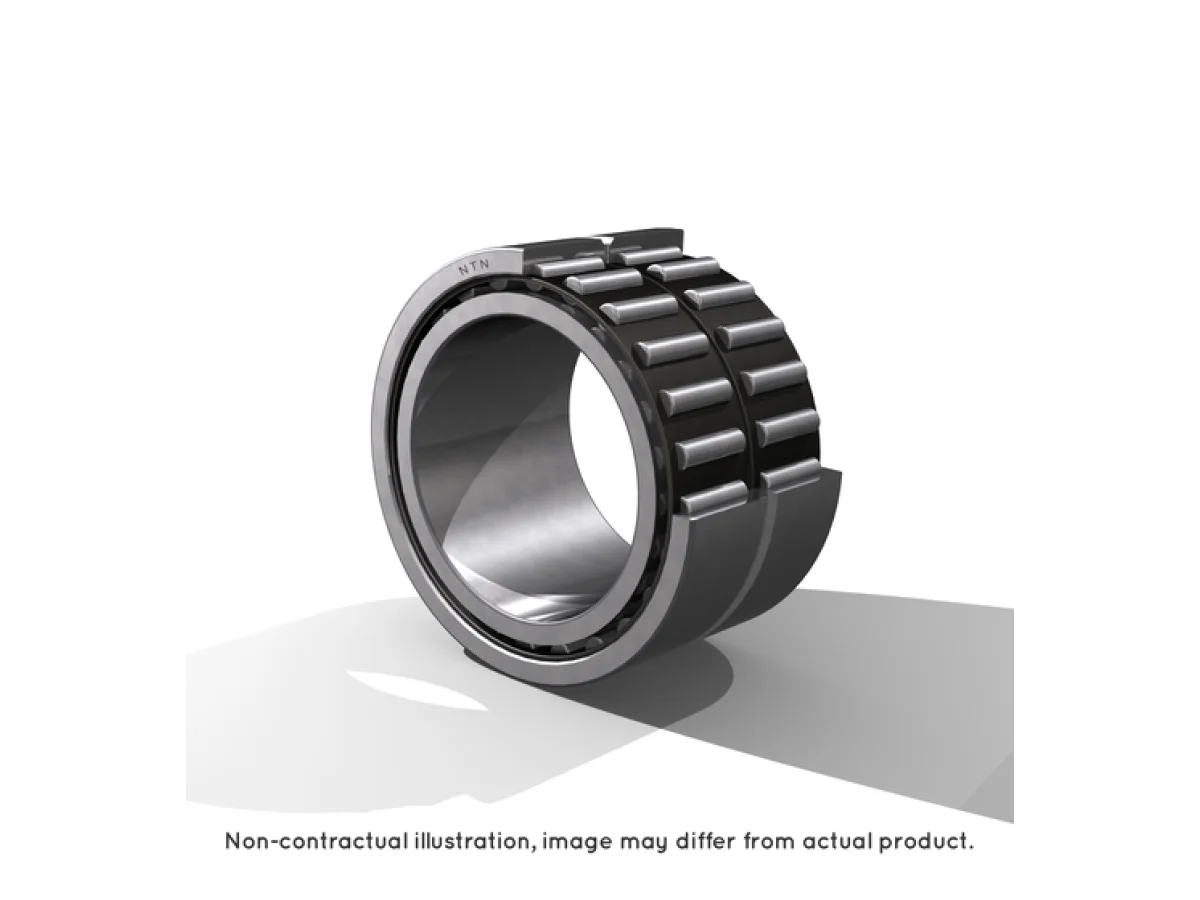

NTN Bearing NA6908RC3 belongs to the Needle Roller Bearings family. The technical tables below show the available dimensions, ratings, speeds and mounting limits for this item.
When requesting a quotation, provide the complete item number, required quantity and operating conditions so Cat Son can verify the configuration.
NA6908RC3 specifications
TECHNICAL SPECIFICATIONS
- Brand / Manufacturer
- NTN

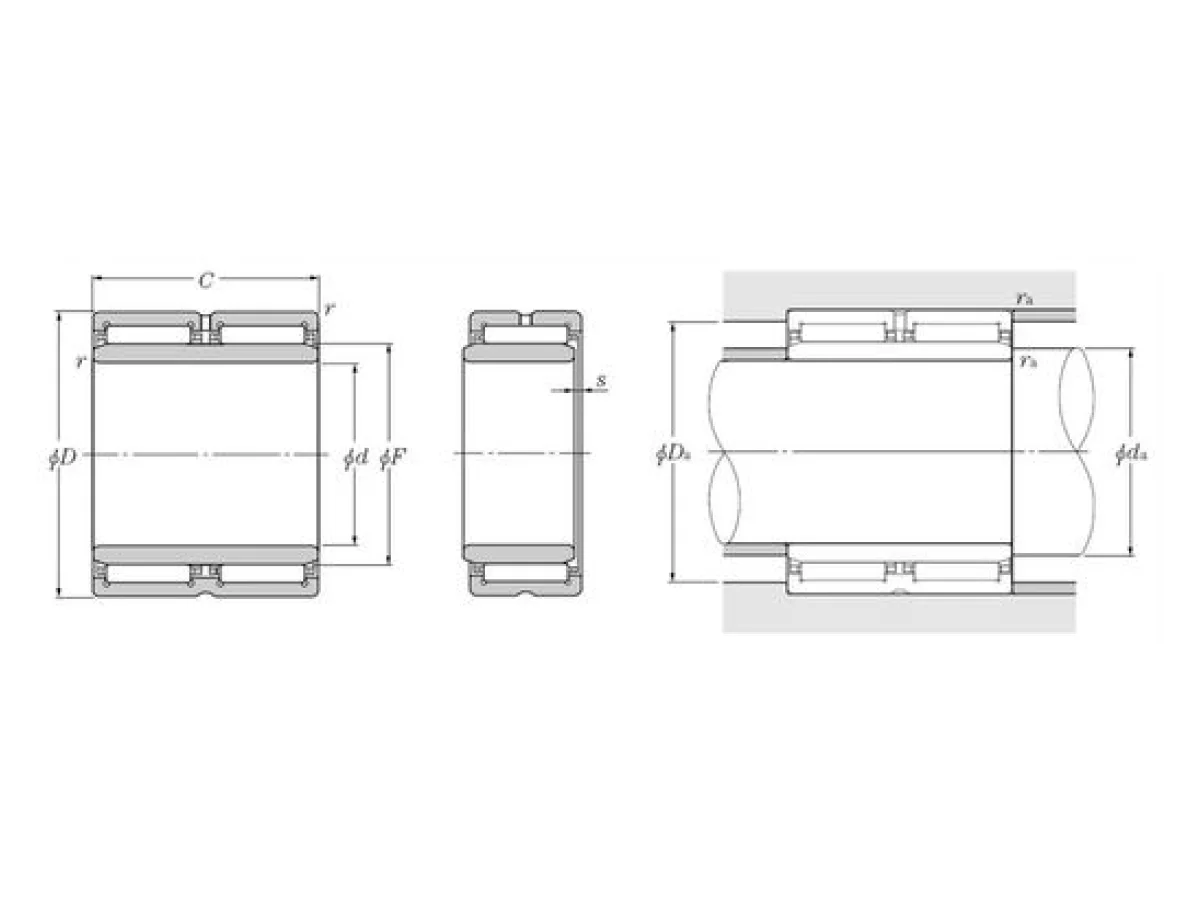

- d - Shaft bore diameter
- 40 mm
- D - Diameter outside
- 62 mm
- C - Width
- 40 mm
- F - Lower roller diameter
- 48 mm
- rs - Minimum fillet radius
- 0,6 mm
- s - Độ lệch shaft maximum
- 0,5 mm
- Outer-ring lubrication holes
- Oui/Yes
- k - Diameter of lubrication hole
- 2,5 mm
- Hole bôi trơn over inner ring
- Non/No
- Bearing clearance
- C3
- Precision class
- P0
- Weight
- 0,426 kg
PRODUCT PERFORMANCE
- Cr - Dynamic load rating
- 67 kN
- C0r - Static load rating
- 116 kN
- N lim - Grease lubrication limiting speed
- 5500 tr/min
- N lim - Oil lubrication limiting speed
- 8500 tr/min
- Tmin - Minimum operating temperature
- -20 °C
- Tmax - Maximum operating temperature
- 120 °C
LIMITS
- da min - Minimum shoulder diameter IR
- 44 mm
- Da max - Maximum shoulder diameter OR
- 58 mm
- ras max - Maximum fillet radius
- 0,6 mm
