Images and technical specifications for item NUP210ET2XC3U.
PRODUCT INFORMATION
Description and selection guidance
NTN Bearing NUP210ET2XC3U belongs to the Cylindrical Roller Bearings family. The technical tables below show the available dimensions, ratings, speeds and mounting limits for this item.
When requesting a quotation, provide the complete item number, required quantity and operating conditions so Cat Son can verify the configuration.
NUP210ET2XC3U specifications
TECHNICAL SPECIFICATIONS
- Brand / Manufacturer
- NTN

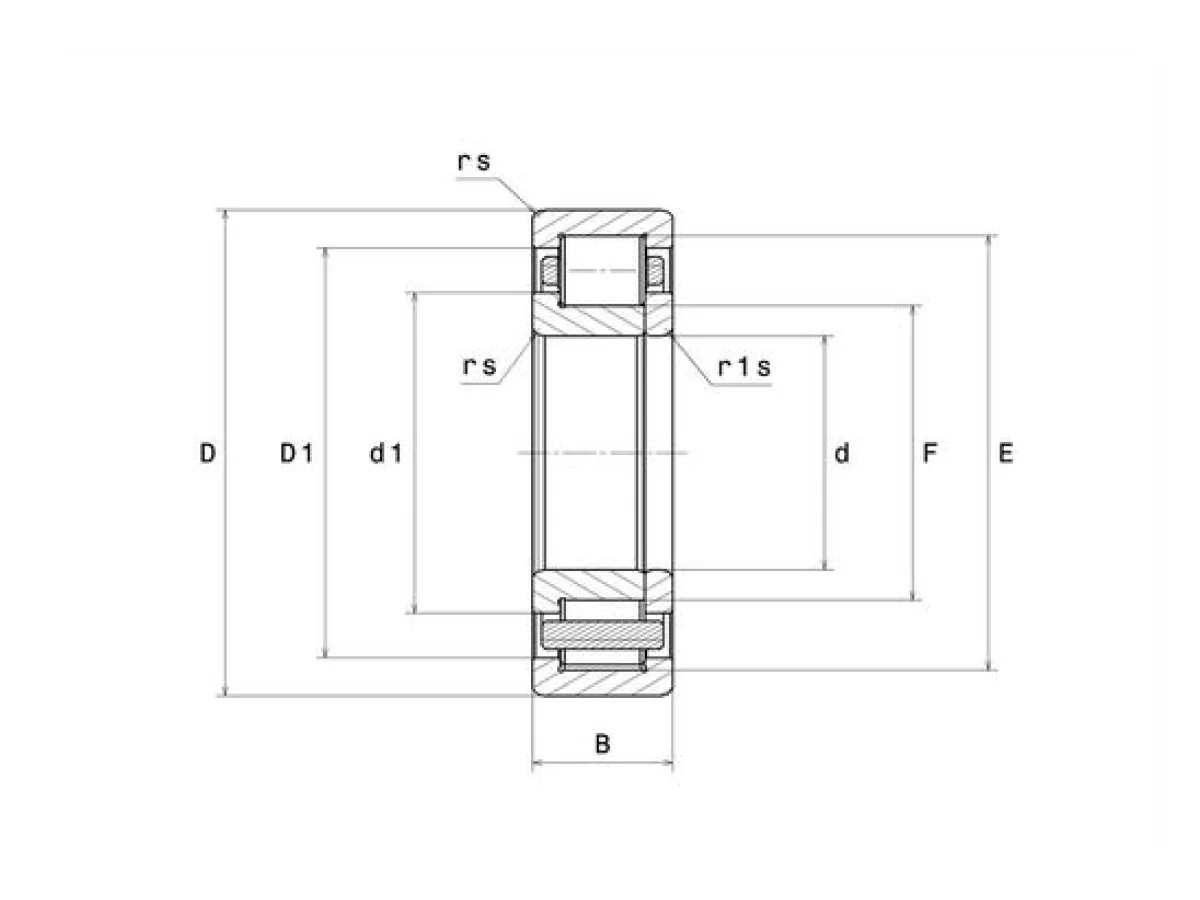

- d - Shaft bore diameter
- 50 mm
- D - Diameter outside
- 90 mm
- B - Width
- 20 mm
- E - Upper roller diameter
- 81,5 mm
- F - Lower roller diameter
- 59,5 mm
- d1 - Diameter outside of flange IR
- 63,9 mm
- rs - Minimum fillet radius
- 1,1 mm
- r1s - Minimum fillet radius
- 1,1 mm
- Bearing clearance
- C3
- Weight
- 0,498 kg
PRODUCT PERFORMANCE
- C - Basic dynamic load rating
- 66 kN
- C0 - Basic static load rating
- 72 kN
- Cu - Fatigue load limit
- 8,8 kN
- N lim - Oil lubrication limiting speed
- 8100 tr/min
- N lim - Grease lubrication limiting speed
- 6900 tr/min
- Tmin - Minimum operating temperature
- -20 °C
- Tmax - Maximum operating temperature
- 120 °C
LIMITS
- da min - Minimum shoulder diameter IR
- 56,5 mm
- dc min - Diameter inner ring minimum GO
- 67 mm
- Da max - Maximum shoulder diameter OR
- 83,5 mm
- ra max - Maximum fillet radius
- 1 mm
