Images and specifications are matched to the NTN-SNR item number; Cat Son verifies the configuration before quotation.
PRODUCT INFORMATION
Description and selection guidance
Closed ball bushings enable precise and low-friction linear movements on self-supporting hardened steel shafts.

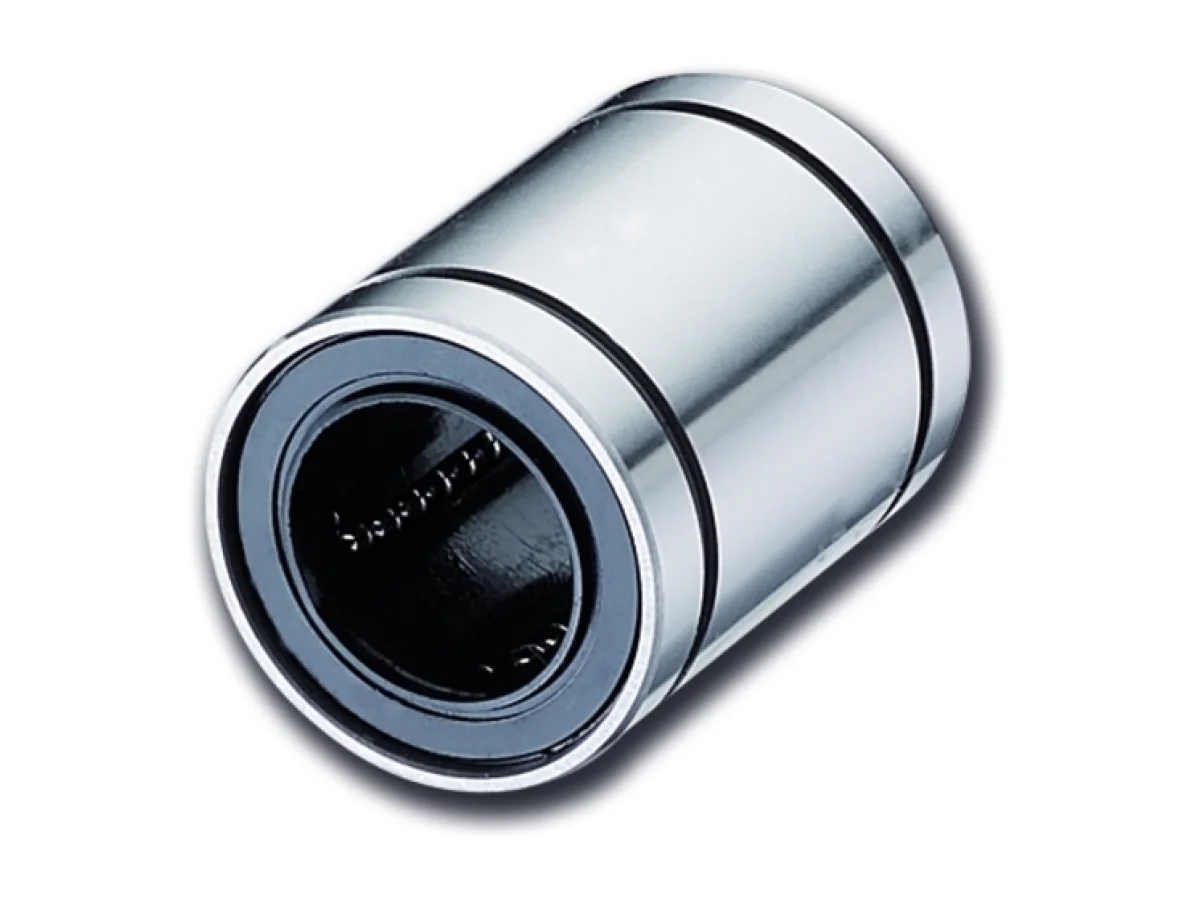

BBS25UU specifications
PRODUCT DEFINITION
- Brand
- SNR
- Design type
- BBE
- Ball bushings category
- Standard ball bushings, closed
- Standard
- JIS dimension
- Number of seals
- 2
- Material outer cylinder or steel segments
- X105CrMo17
- Material Cage
- PA
- Initial greasing
- Non/No
- d - Internal diameter
- 25 mm
- d - Internal diameter tolerance
- 0/-0,010
- D - External diameter
- 40 mm
- D - External diameter tolerance
- 0/-0,016
- L - Length
- 59 mm
- L - Length tolerance
- 0/-0,3
- L1
- 41 mm
- L1 tolerance
- 0/-0,3
- D1 - Diameter
- 38 mm
- L2
- 1,85 mm
- Number of ball rows
- 6
- Mass
- 0,24 kg
PRODUCT PERFORMANCE
- Cmin
- 1073000 mN
- Cmax
- 1373000 mN
- C0min
- 1570000 mN
- C0max
- 2010000 mN
- Tmin - Min operating temperature
- 253,15 °K
- Tmax - Max operating temperature
- 353,15 °K
