PRODUCT INFORMATION
Description and selection guidance
Closed ball bushings enable precise and low-friction linear movements on self-supporting hardened steel shafts.
BBS5A specifications
PRODUCT DEFINITION
- Brand
- SNR
- Design type
- BBE
- Ball bushings category
- Standard ball bushings, closed
- Standard
- JIS dimension
- Material outer cylinder or steel segments
- X105CrMo17
- Material Cage
- X5CrNi18-10
- Initial greasing
- Non/No

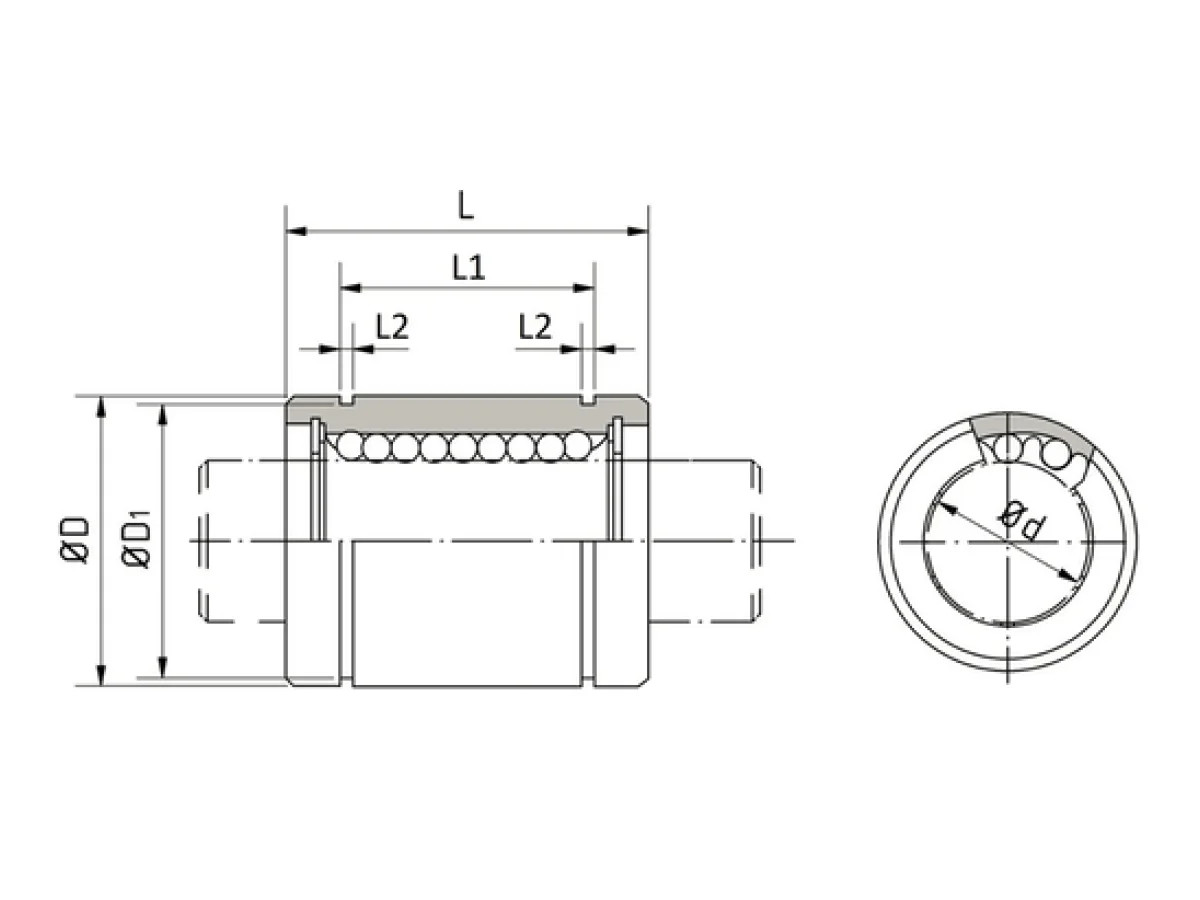

- d - Internal diameter
- 5 mm
- d - Internal diameter tolerance
- 0/-0,008
- D - External diameter
- 10 mm
- D - External diameter tolerance
- 0/-0,009
- L - Length
- 15 mm
- L - Length tolerance
- 0/-0,12
- L1
- 10,2 mm
- L1 tolerance
- 0/-0,2
- D1 - Diameter
- 9,6 mm
- L2
- 1,1 mm
- Number of ball rows
- 4
- Mass
- 0,004 kg
PRODUCT PERFORMANCE
- Cmin
- 82000 mN
- Cmax
- 116000 mN
- C0min
- 206000 mN
- C0max
- 291000 mN
- Tmin - Min operating temperature
- 253,15 °K
- Tmax - Max operating temperature
- 413,15 °K
