NTN-SNR Ball Screw BNU03205LCILL4Z-B0 is matched to the official NTN-SNR item number. Review the technical data, images and documents before requesting a quotation.

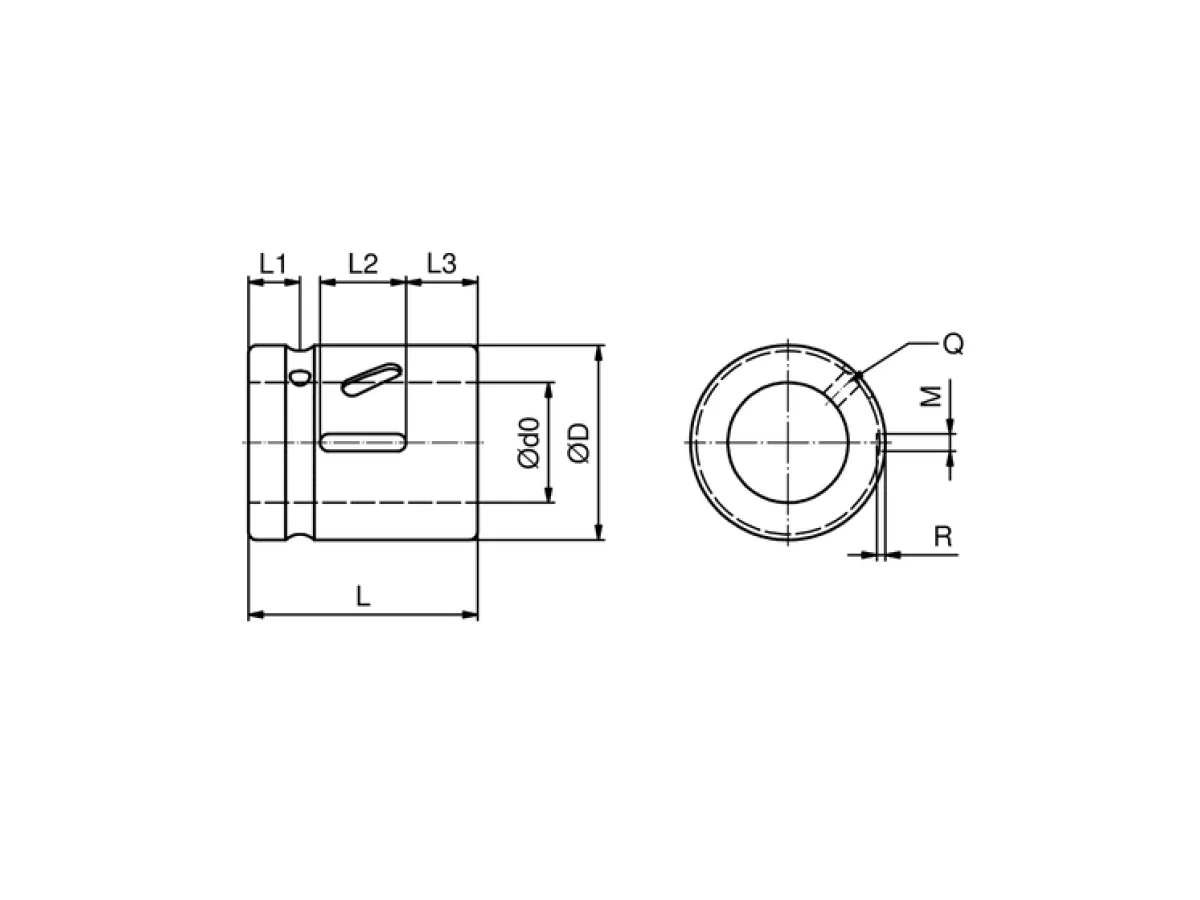

BNU03205LCILL4Z-B0 specifications
PRODUCT DEFINITION
- Designation
- BNU03205LCILL4Z-B0
- Brand
- SNR
- Series
- BNU
- d0
- 32 mm
- Pitch P
- 5 mm
- Pitch direction
- Left
- Nut type
- CI - Cylindrical single nut
- Sealing
- LL - Labyrinth seal on both sides
- Material
- Carbon steel
- Dw
- 3,175 mm
- D1 g6
- 50 mm
- L - Length
- 45 mm
- L1
- 9 mm
- L2
- 20 mm
- L3
- 12,5 mm
- Q
- 3,5 mm
- M P9
- 5 mm
- R
- 3 mm
- Number of circuits
- 1 x 4
- Mass
- 0,21 kg
PRODUCT PERFORMANCE
- DN value for T7
- 70000 mmpm
- DN value for P5
- 80000 mmpm
- Ca for T7
- 15273000 mN
- C0a for T7
- 50391000 mN
- Ca for P5
- 16970000 mN
- C0a for P5
- 55990000 mN
- Kn
- 530 N/µm
