NTN-SNR Ball Screw BNU03205RDCLL3B-B0 is matched to the official NTN-SNR item number. Review the technical data, images and documents before requesting a quotation.

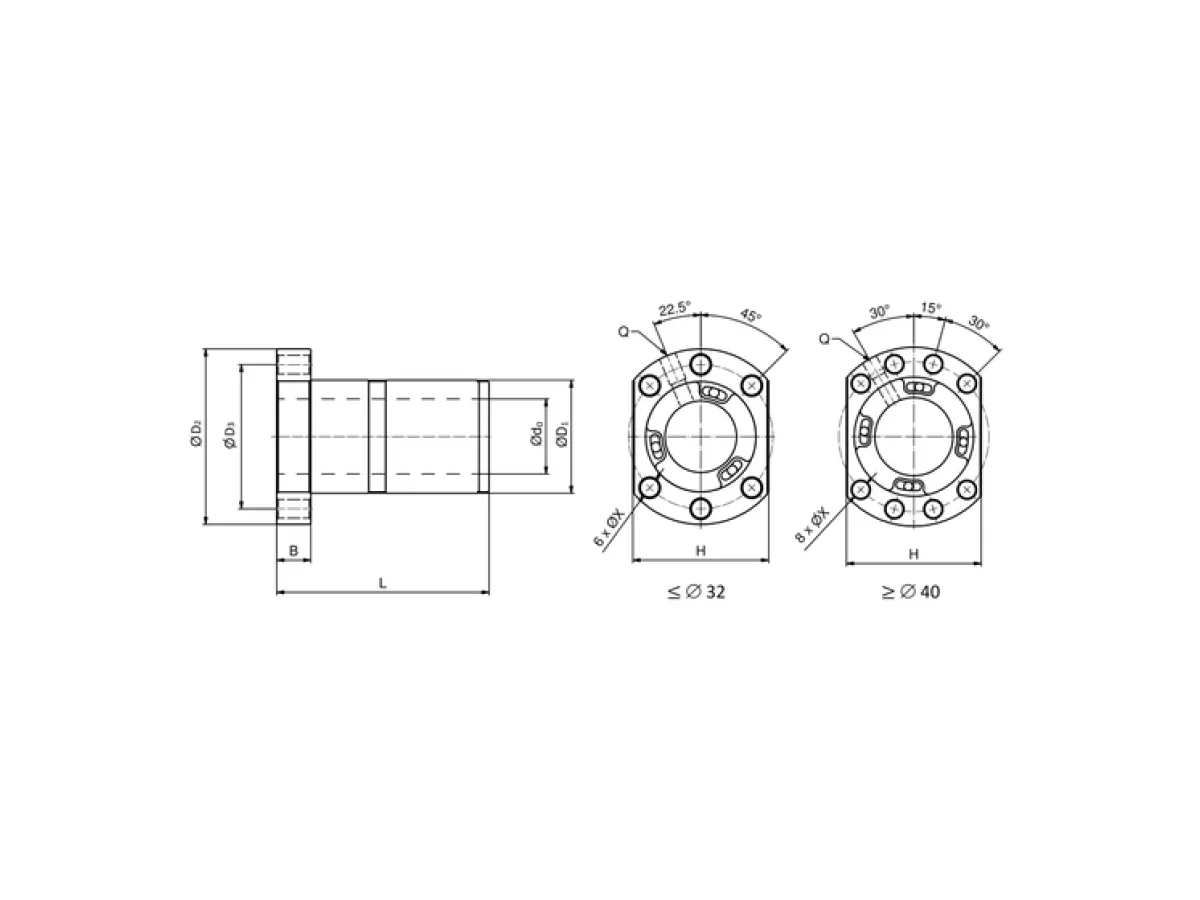

BNU03205RDCLL3B-B0 specifications
PRODUCT DEFINITION
- Designation
- BNU03205RDCLL3B-B0
- Brand
- SNR
- Series
- BNU
- d0
- 32 mm
- Pitch P
- 5 mm
- Pitch direction
- Right
- Nut type
- DC - Compact double nut with flange (DIN 69051)
- Flange type
- Type B - double cut flange
- Sealing
- LL - Labyrinth seal on both sides
- Material
- Carbon steel
- Dw
- 3,175 mm
- D1 g6
- 50 mm
- D2
- 80 mm
- B - Flange width
- 12 mm
- L - Length
- 72 mm
- D3
- 65 mm
- H
- 62 mm
- X
- 9 mm
- Q
- 0 mm
- Number of circuits
- 3,8 x 1
- Mass
- 0,69 kg
PRODUCT PERFORMANCE
- DN value for P5
- 100000 mmpm
- Ca for T7
- 14607000 mN
- C0a for T7
- 47862000 mN
- Ca for P5
- 16230000 mN
- C0a for P5
- 53180000 mN
- Kn
- 696 N/µm
