Images and specifications are matched to the NTN-SNR item number; Cat Son verifies the configuration before quotation.
PRODUCT INFORMATION
Description and selection guidance

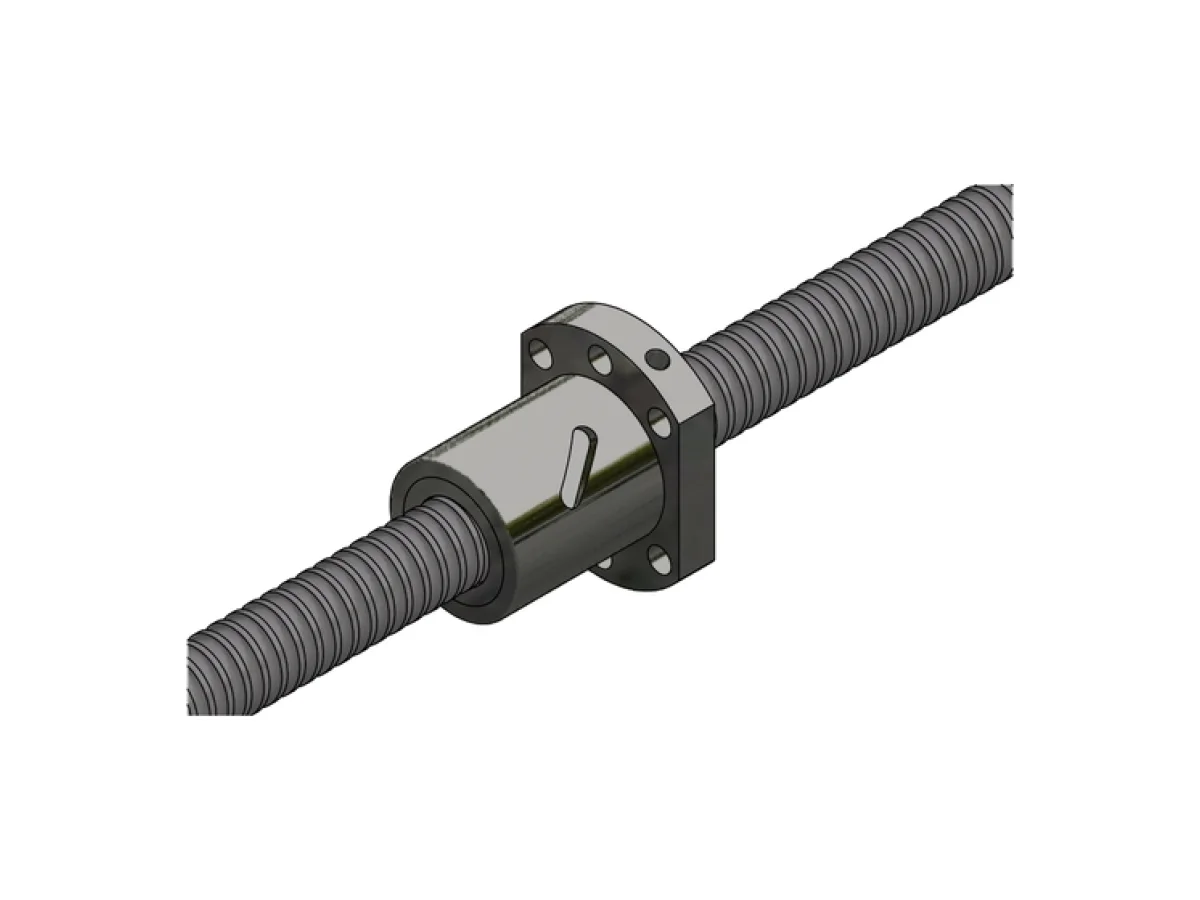

NTN-SNR Ball Screw BNU04010LSULL4B-B0 is matched to the official NTN-SNR item number. Review the technical data, images and documents before requesting a quotation.
BNU04010LSULL4B-B0 specifications
PRODUCT DEFINITION
- Designation
- BNU04010LSULL4B-B0
- Brand
- SNR
- Series
- BNU
- d0
- 40 mm
- Pitch P
- 10 mm
- Pitch direction
- Left
- Nut type
- SU - Single nut with flange (DIN 69051)
- Flange type
- Type B - double cut flange
- Sealing
- LL - Labyrinth seal on both sides
- Material
- Carbon steel
- Dw
- 6,35 mm
- D1 g6
- 63 mm
- D2
- 93 mm
- B - Flange width
- 14 mm
- L - Length
- 93 mm
- D3
- 78 mm
- H
- 70 mm
- X
- 9 mm
- Q
- 0 mm
- Number of circuits
- 1 x 4
- Mass
- 1,33 kg
PRODUCT PERFORMANCE
- DN value for T7
- 70000 mmpm
- DN value for P5
- 80000 mmpm
- Ca for T7
- 42885000 mN
- C0a for T7
- 123120000 mN
- Ca for P5
- 47650000 mN
- C0a for P5
- 136800000 mN
- Kn
- 716 N/µm
NTN-SNR ITEM SUPPORT
Send the current item and operating conditions.
Cat Son can compare dimensions, design and mounting conditions before quotation.
