Images and specifications are matched to the NTN-SNR item number; Cat Son verifies the configuration before quotation.
PRODUCT INFORMATION
Description and selection guidance

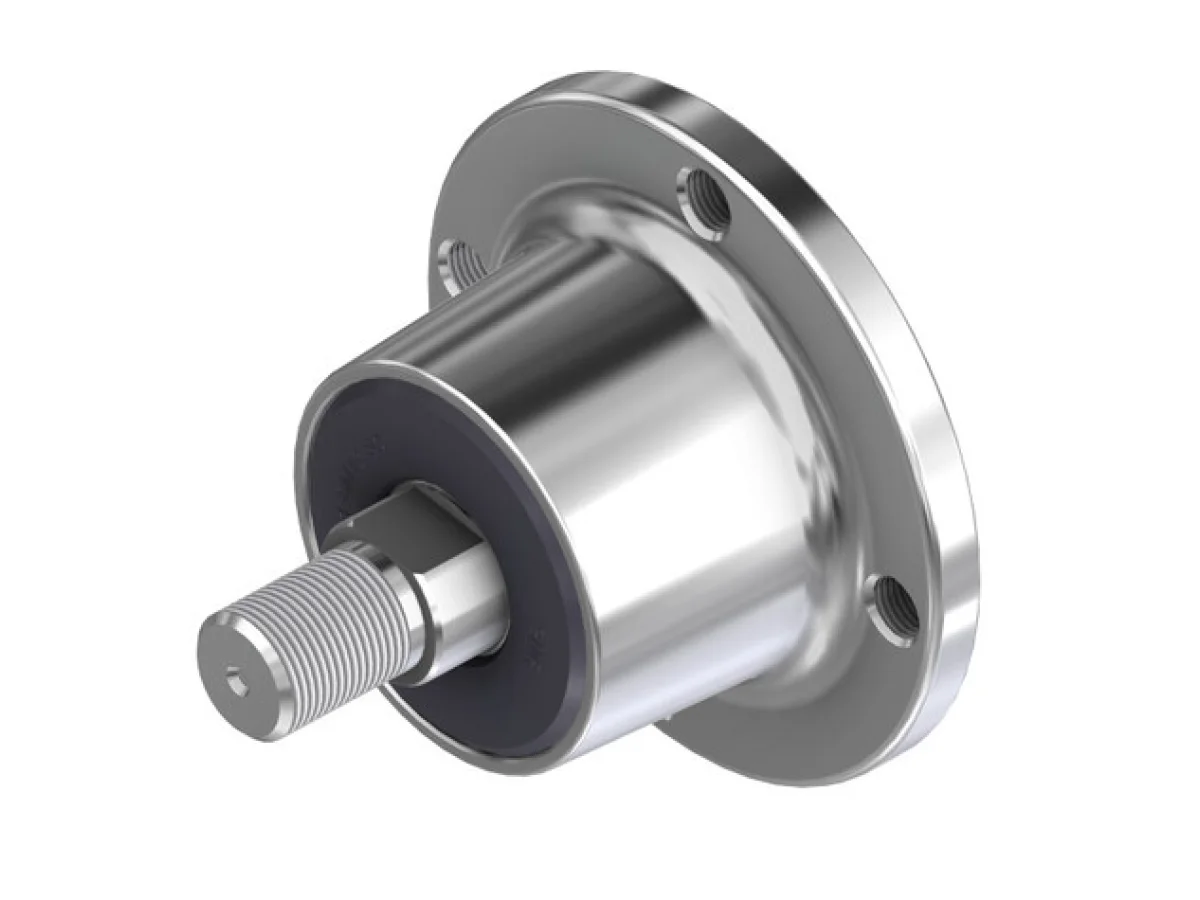

NTN-SNR Bearing Housing HUA151-4M12-S01 is matched to the official NTN-SNR item number. Review the technical data, images and documents before requesting a quotation.
HUA151-4M12-S01 specifications
PRODUCT DEFINITION
- Brand
- SNR
- d1 - Shaft diameter outlet
- 28 mm
- c - Shaft diameter flattening
- 25,5 mm
- g - Fixation Thread
- M12 x 1.25
- G - Thread on shaft
- M22 x 1.5
- A2 - Total length
- 102 mm
- A - Housing length, flange to end of housing
- 60 mm
- A1 - Flanged height
- 10 mm
- L - Flanged diameter
- 117 mm
- J - Bolt circle
- 98 mm
- l1 - Shaft extension housing/cover to Thread
- 13 mm
- lg - Thread length
- 26 mm
- t - Number and angle of bores/threads
- 4x90°
- Mass
- 2,12 kg
PRODUCT PERFORMANCE
- C - Dynamic load rating
- 49810000 mN
- C0 - Static load rating
- 39020000 mN
NTN-SNR ITEM SUPPORT
Send the current item and operating conditions.
Cat Son can compare dimensions, design and mounting conditions before quotation.
