PRODUCT INFORMATION
Description and selection guidance
Ball sleeves are compact components for precise and low-friction linear movements on self-supporting hardened steel shafts.
KH1228 specifications
PRODUCT DEFINITION
- Brand
- NTN
- Design type
- KH
- Ball bushings category
- Ball sleeves
- Standard
- ISO dimension
- Material outer cylinder or steel segments
- hardened steel sleeve
- Material Cage
- PA
- Initial greasing
- Non/No
- Re-lubricable
- Oui/Yes

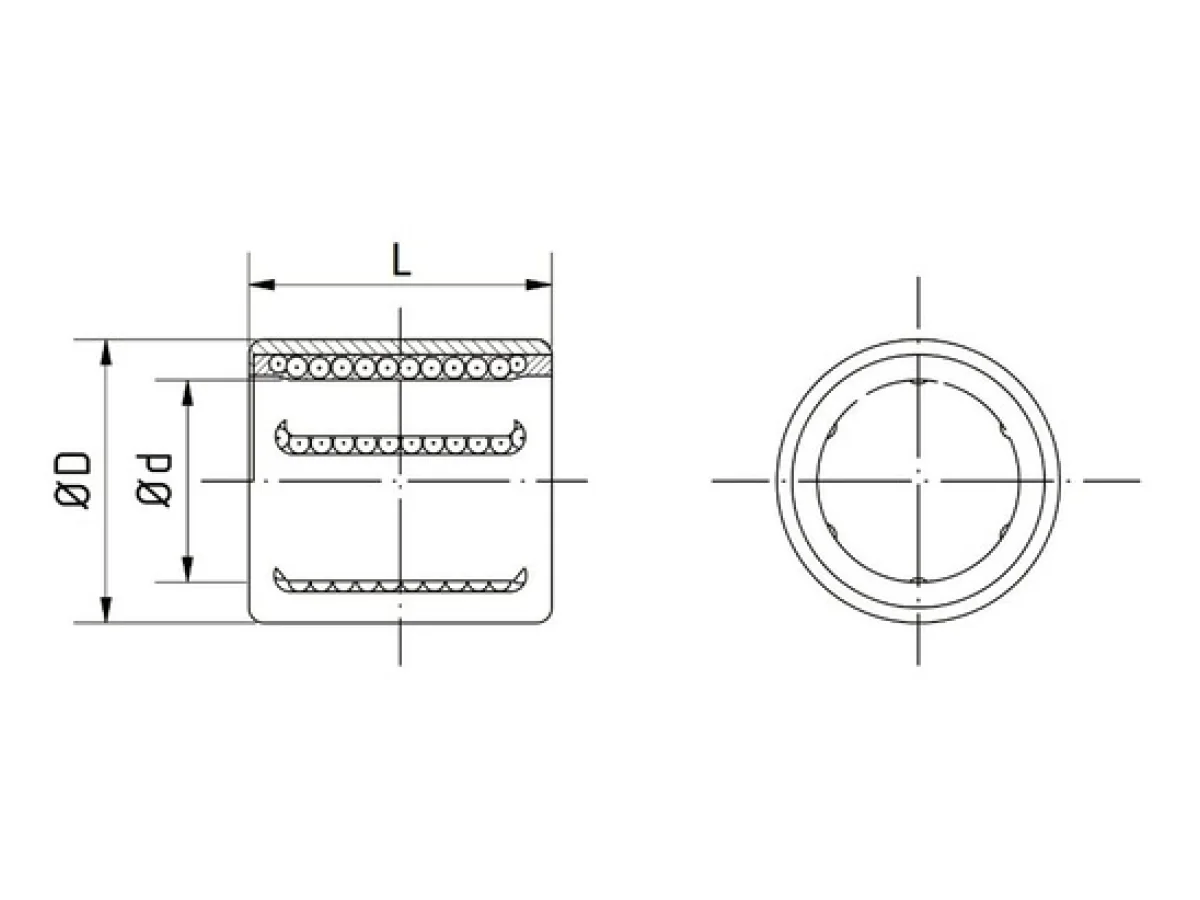

- d - Internal diameter
- 12 mm
- D - External diameter
- 19 mm
- L - Length
- 28 mm
- Number of ball rows
- 5
- Mass
- 0,018 kg
PRODUCT PERFORMANCE
- Cmin
- 605000 mN
- Cmax
- 605000 mN
- C0min
- 495000 mN
- C0max
- 495000 mN
- Tmin - Min operating temperature
- 253,15 °K
- Tmax - Max operating temperature
- 353,15 °K
