NTN-SNR Nut KML40 is matched to the official NTN-SNR item number. Review the technical data, images and documents before requesting a quotation.
KML40 specifications
PRODUCT DEFINITION
- Brand
- SNR

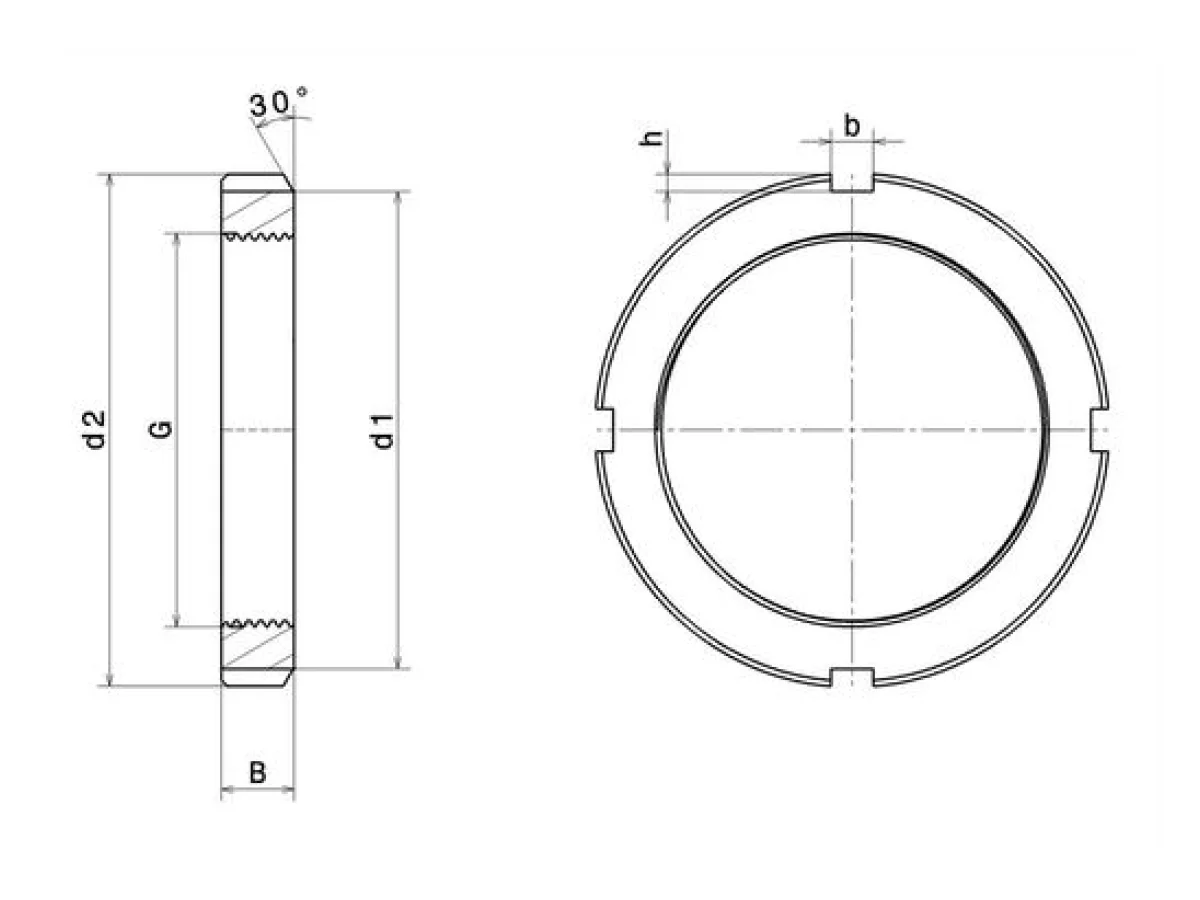

- G - Thread designation
- M200X3
- d2 - Outer diameter of locknut
- 240 mm
- B - Nut width
- 29 mm
- d1 - Outer diameter of the locking surface of the nut
- 222 mm
- Chamfer angle of the nut
- 30 °
- b - Notch width
- 18 mm
- h - Notch depth
- 8 mm
- Mass
- 2,98 kg
TECHNICAL CHARACTERISTICS
- Designation of the associated blocking device
- MBL40
