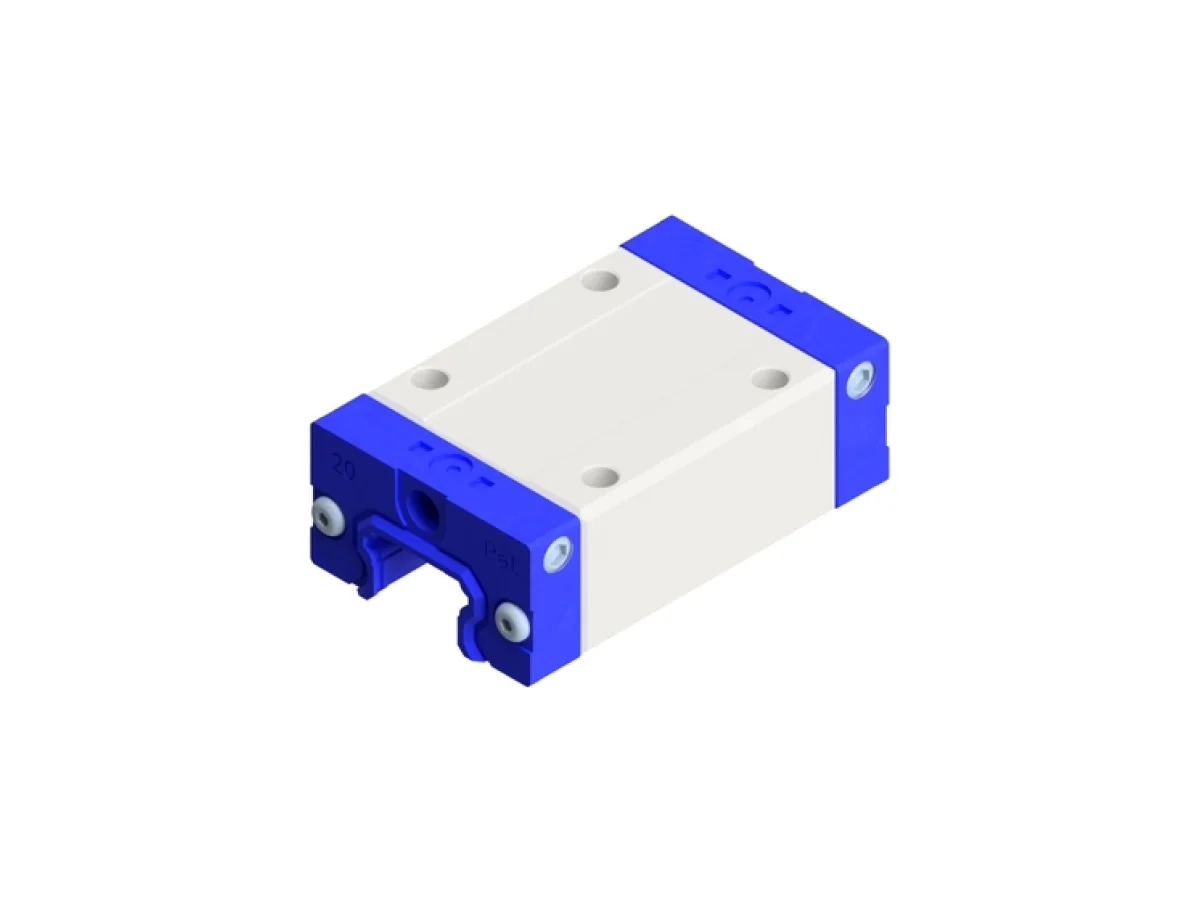

NTN-SNR Linear Guide LGBXH55BLSSNZ1-N is matched to the official NTN-SNR item number. Review the technical data, images and documents before requesting a quotation.

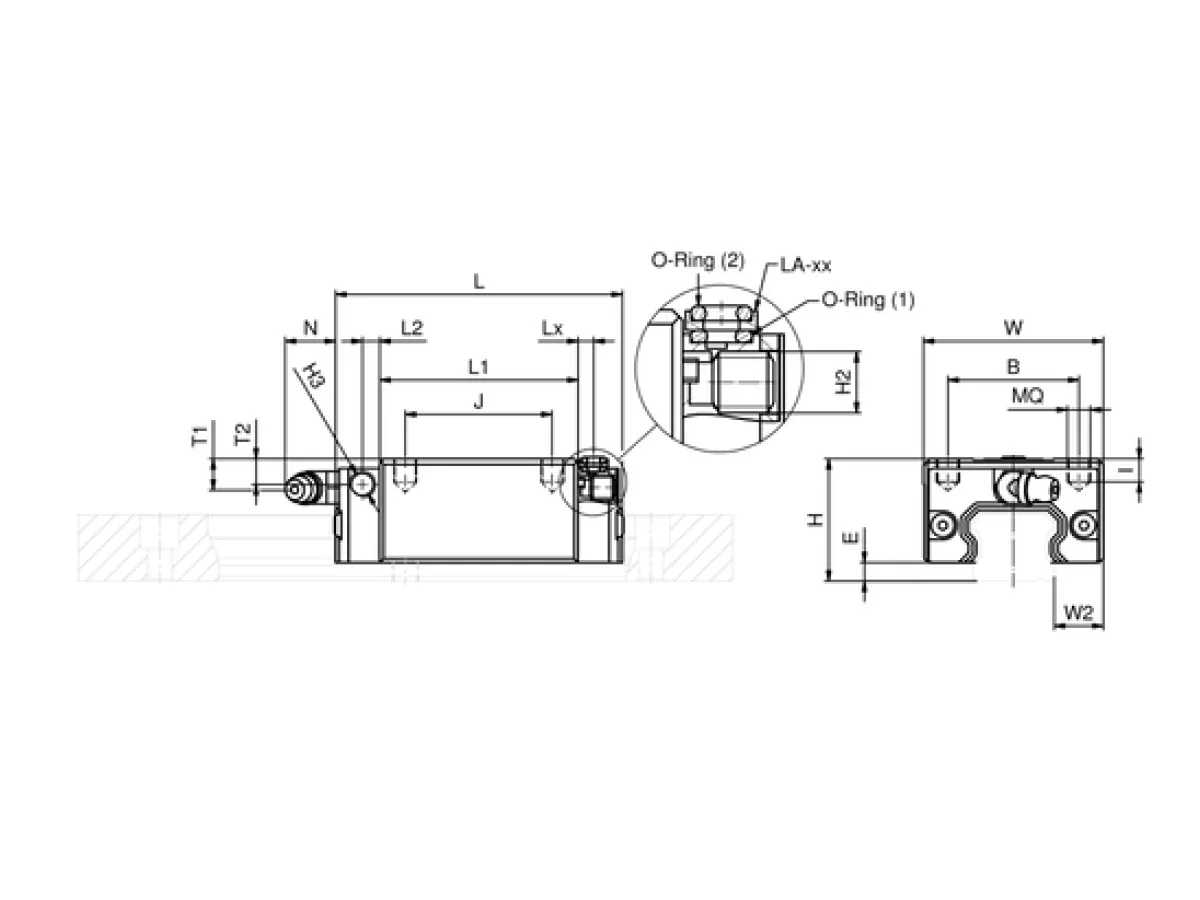

LGBXH55BLSSNZ1-N specifications
PRODUCT DEFINITION
- Brand
- SNR
- Series
- LGB
- Carriage version
- X
- Carriage Height
- H
- Size
- 55
- Design type
- BL
- Sealing
- SS - End seals on both sides, inner and side seals
- Precision class
- N
- Preload class
- Z1
- Material
- Carbon steel
- Special options
- N - Standard
- Lubrication connection
- 00 - Hydraulic type grease nipple 67°
- Lubricant
- A - SNR LUB HEAVY DUTY
- H
- 80 mm
- W
- 100 mm
- W2
- 23,5 mm
- E
- 12,7 mm
- L - Length
- 193 mm
- B - Flange width
- 75 mm
- J
- 75 mm
- MQ
- M 12
- l
- 22 mm
- L1
- 154 mm
- H2
- M 8
- T1
- 24 mm
- N
- 10,8 mm
- T2
- 24,5 mm
- L2
- 10 mm
- H3
- M 8
- Lx
- 7,5 mm
- Mass
- 3,57 kg
PRODUCT PERFORMANCE
- C50
- 96460000 mN
- C100
- 76560000 mN
- C0
- 183140000 mN
- Mx
- 4,538 kN-m
- My
- 4,202 kN-m
- Mz
- 4,202 kN-m
