Images and specifications are matched to the NTN-SNR item number; Cat Son verifies the configuration before quotation.
PRODUCT INFORMATION
Description and selection guidance
NTN-SNR Linear Guide LGBXS30BESSNZ2-N is matched to the official NTN-SNR item number. Review the technical data, images and documents before requesting a quotation.
LGBXS30BESSNZ2-N specifications
PRODUCT DEFINITION
- Brand
- SNR
- Series
- LGB
- Carriage version
- X
- Carriage Height
- S
- Size
- 30
- Design type
- BE
- Sealing
- SS - End seals on both sides, inner and side seals
- Precision class
- N
- Preload class
- Z2
- Material
- Carbon steel
- Special options
- N - Standard
- Lubrication connection
- 00 - Hydraulic type grease nipple 67°
- Lubricant
- A - SNR LUB HEAVY DUTY

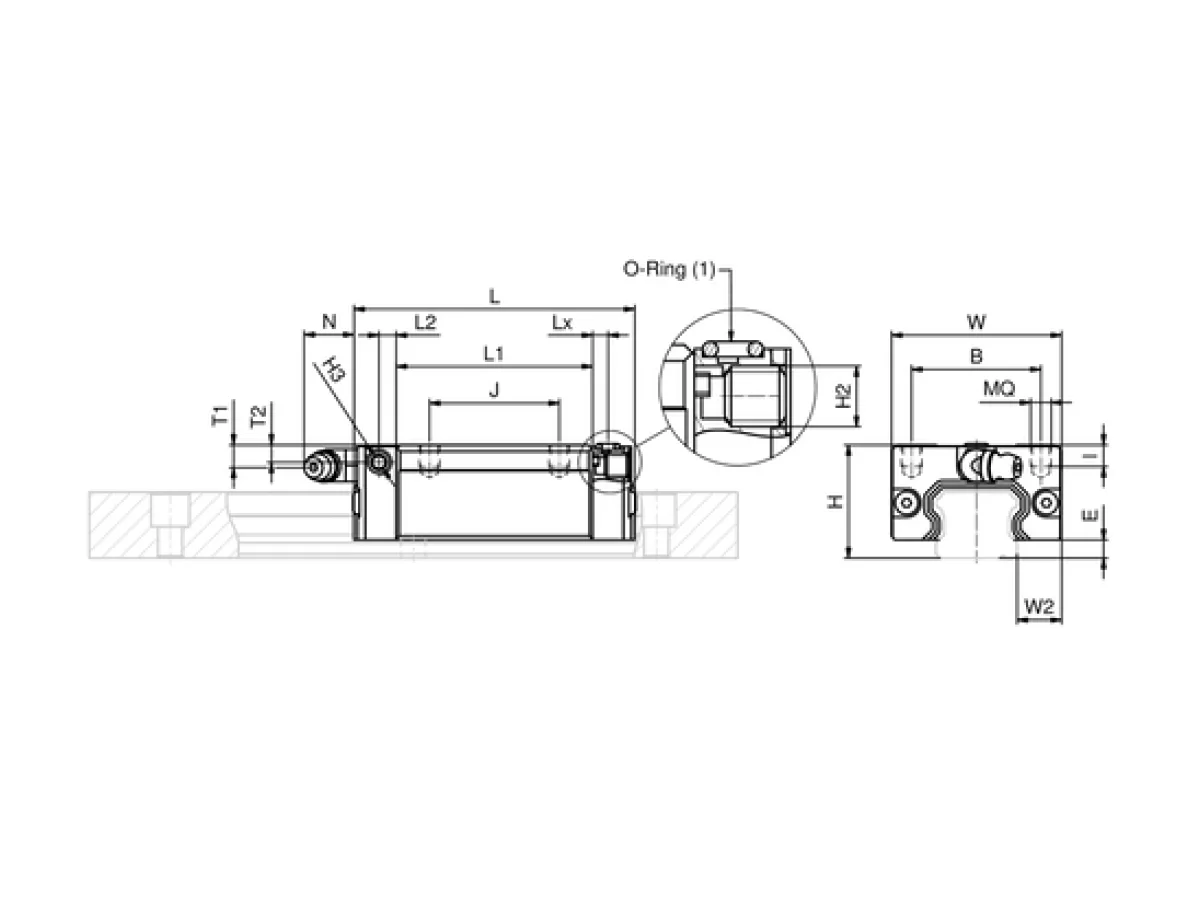

- H
- 42 mm
- W
- 60 mm
- W2
- 16 mm
- E
- 7 mm
- L - Length
- 130,5 mm
- B - Flange width
- 40 mm
- J
- 60 mm
- MQ
- M 8
- l
- 10 mm
- L1
- 103,5 mm
- H2
- M 6
- T1
- 8 mm
- N
- 11,7 mm
- T2
- 5,5 mm
- L2
- 6 mm
- H3
- M 6
- Lx
- 5 mm
- Mass
- 1,16 kg
PRODUCT PERFORMANCE
- C50
- 43600000 mN
- C100
- 34600000 mN
- C0
- 88180000 mN
- Mx
- 1,142 kN-m
- My
- 1,361 kN-m
- Mz
- 1,361 kN-m
