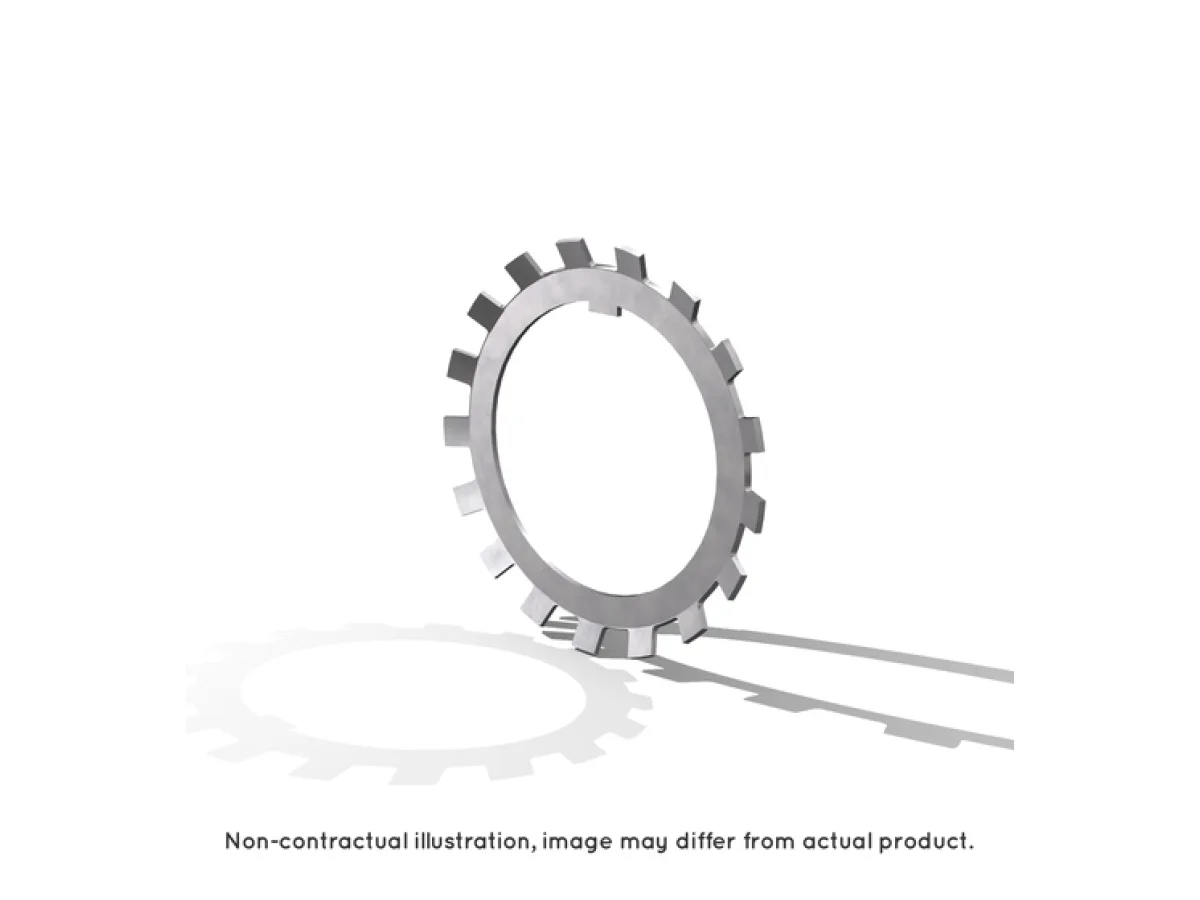

NTN-SNR Locking Device MB3 is matched to the official NTN-SNR item number. Review the technical data, images and documents before requesting a quotation.
MB3 specifications
PRODUCT DEFINITION
- Brand
- SNR

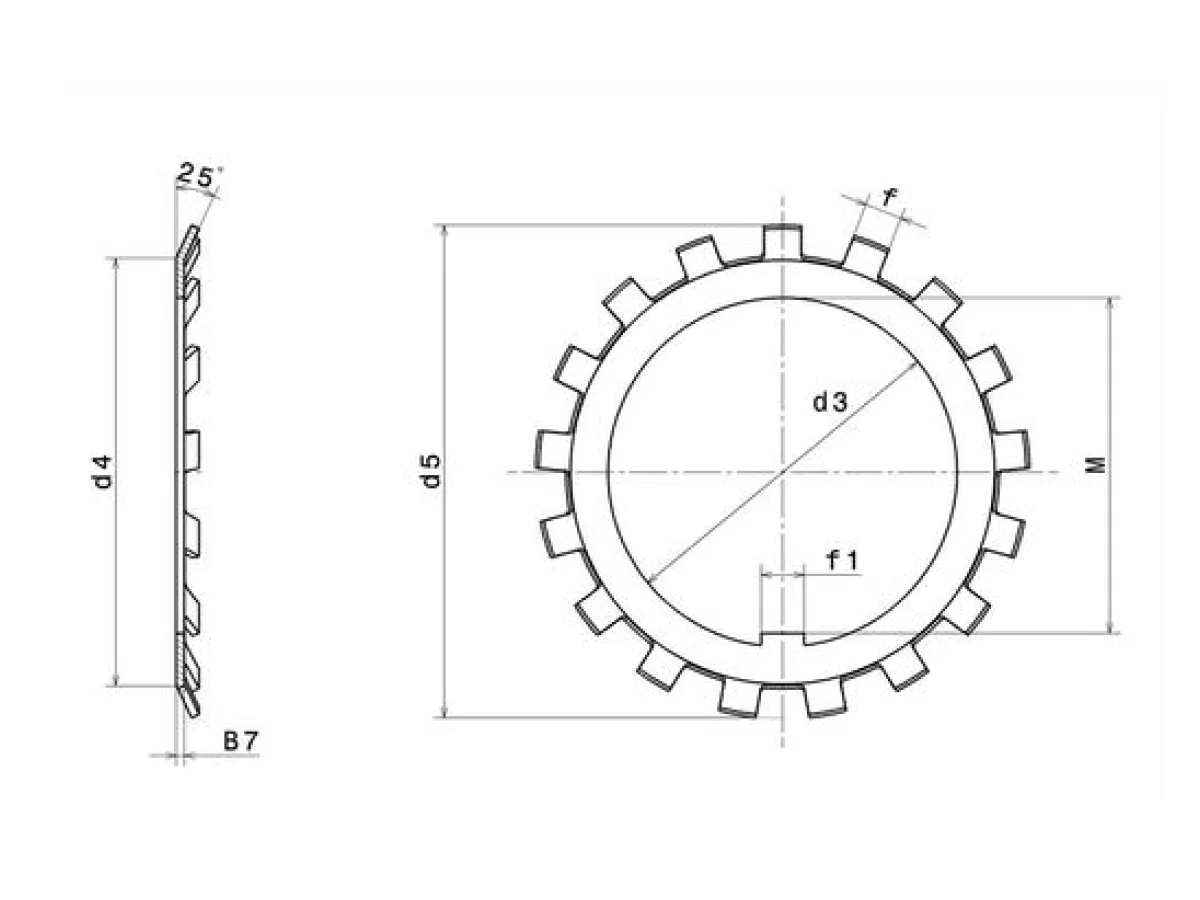

- d3 - Safety washer bore diameter
- 17 mm
- d4 - Tooth root diameter
- 24 mm
- d5 - Outer diameter of the safety washer
- 32 mm
- B7 - Security washer thickness
- 1 mm
- M - Distance between inner tab and bore diameter
- 15,5 mm
- f - Width of outer teeth
- 4 mm
- f1 - Inner tab width
- 4 mm
- Mass
- 0,001 kg
TECHNICAL CHARACTERISTICS
- Designation of the associated nut
- KM3
