NTN-SNR Locking Device MB36 is matched to the official NTN-SNR item number. Review the technical data, images and documents before requesting a quotation.

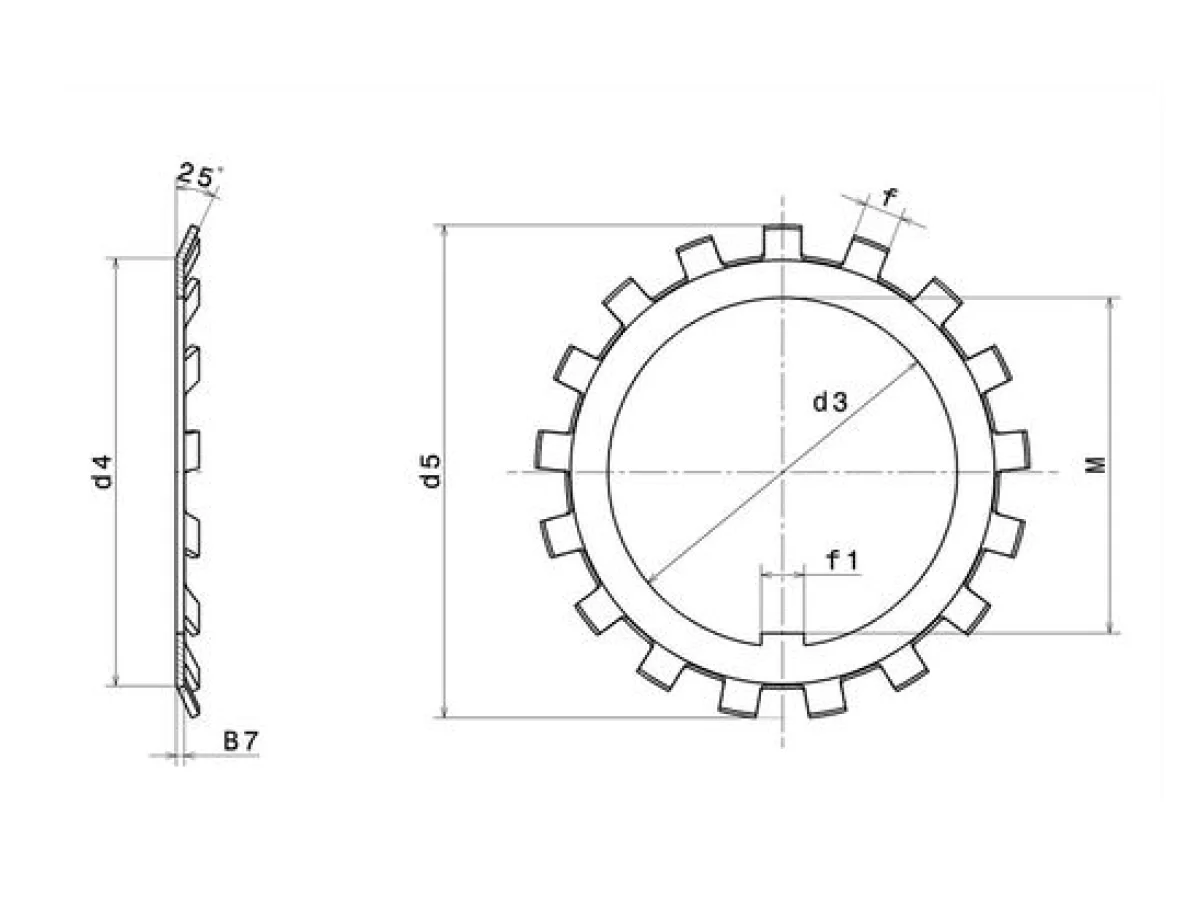

MB36 specifications
PRODUCT DEFINITION
- Brand
- SNR
- d3 - Safety washer bore diameter
- 180 mm
- d4 - Tooth root diameter
- 203 mm
- d5 - Outer diameter of the safety washer
- 242 mm
- B7 - Security washer thickness
- 2,5 mm
- M - Distance between inner tab and bore diameter
- 174 mm
- f - Width of outer teeth
- 18 mm
- f1 - Inner tab width
- 20 mm
- Mass
- 0,268 kg
TECHNICAL CHARACTERISTICS
- Designation of the associated nut
- KM36
