PRODUCT DEFINITION

Brand

SNR

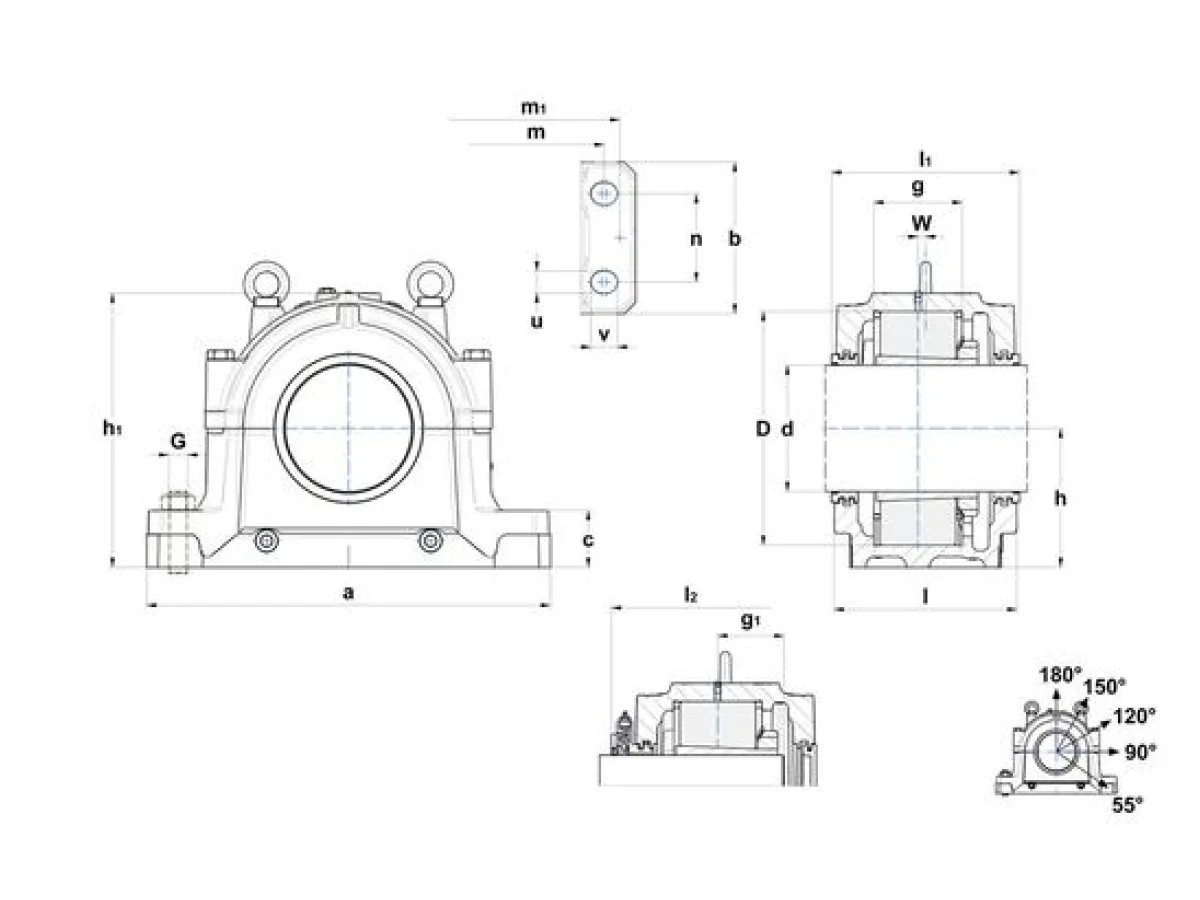

d - Shaft diameter

440 mm

d1 - Shaft diameter outlet large

470 mm

a - Housing length

1120 mm

b - Housing foot width

390 mm

c - Housing foot height

125 mm

g - Bearing seat width

200 mm

h - Bearing center height

380 mm

h1 - Housing height

775 mm

l - Housing mid width

430 mm

l1 - Width over TS

439 mm

l2 - Width over TA

521 mm

m - Mounting hole/punches distance (length)

950 mm

m1 - Distance punches dowel pins

1020 mm

n - Mounting hole distance (width)

240 mm

u - Mounting hole (width)

48 mm

v - Mounting hole (length)

60 mm

D - Bearing seat diameter

650 mm

g1 - Distance small shaft shoulder to bearing center

197 mm

W - Bearing distance

30 mm

Housing weight

571 kg

Material of Housing

ductile cast

Initial grease quantity

25 l

BOLTS

G - Fixing bolts

M42

Recommended torque fixing bolts

2800 N-m

Connection bolts

M36x250

Recommended torque connection bolts

1520 N-m

Eye bolt(s)

M42

Maximum loads 120°

1800000000 mN

Maximum loads 150°

1040000000 mN

Maximum loads 180°

900000000 mN

BREAKING LOADS

Breaking loads P 0°

10900000000 mN

Breaking loads P 55°

14400000000 mN

Breaking loads P 90°

7000000000 mN

Breaking loads P 120°

5200000000 mN

Breaking loads P 150°

4500000000 mN

Breaking loads P 180°

5700000000 mN

Breaking loads axial P a

3740000000 mN

ASSOCIATED COMPONENTS - GENERAL

Bearing

23088

Adapter sleeve

-

Fixing rings

2 x FR650x21.5x15

Labyrinth sealing TS

TS-500

Taconite Sealing TA

TA-500

End cover TE

TE-500
