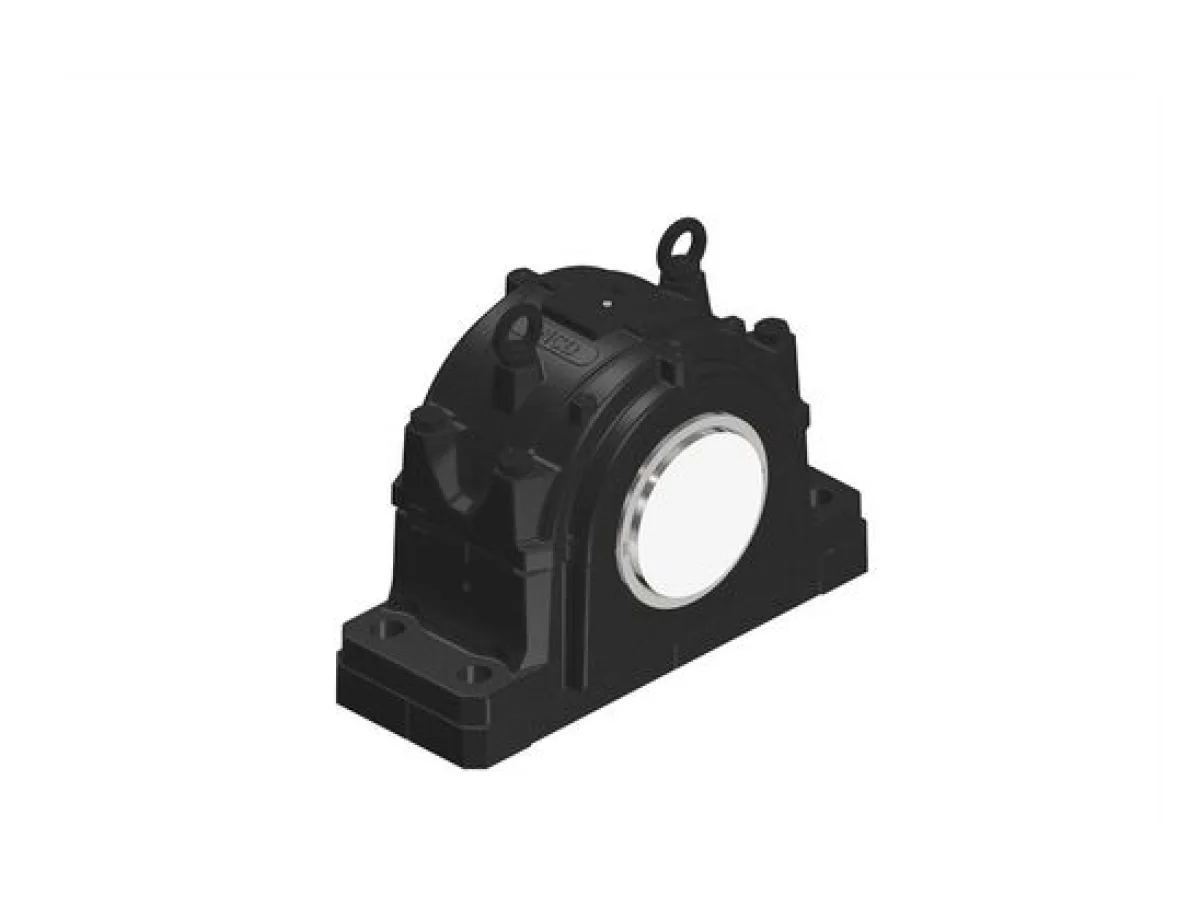

PRODUCT DEFINITION

Brand

SNR

d - Shaft diameter

480 mm

d1 - Shaft diameter outlet large

510 mm

a - Housing length

1170 mm

b - Housing foot width

420 mm

c - Housing foot height

130 mm

g - Bearing seat width

224 mm

h - Bearing center height

410 mm

h1 - Housing height

810 mm

l - Housing mid width

460 mm

l1 - Width over TS

469 mm

l2 - Width over TA

551 mm

m - Mounting hole/punches distance (length)

1000 mm

m1 - Distance punches dowel pins

1070 mm

n - Mounting hole distance (width)

260 mm

u - Mounting hole (width)

48 mm

v - Mounting hole (length)

60 mm

D - Bearing seat diameter

700 mm

g1 - Distance small shaft shoulder to bearing center

209 mm

W - Bearing distance

35 mm

Housing weight

686 kg

Material of Housing

ductile cast

Initial grease quantity

29,7 l

BOLTS

G - Fixing bolts

M42

Recommended torque fixing bolts

2800 N-m

Connection bolts

M42x280

Recommended torque connection bolts

2430 N-m

Eye bolt(s)

M42

Maximum loads 120°

2300000000 mN

Maximum loads 150°

1330000000 mN

Maximum loads 180°

1150000000 mN

BREAKING LOADS

Breaking loads P 0°

12160000000 mN

Breaking loads P 55°

15360000000 mN

Breaking loads P 90°

7360000000 mN

Breaking loads P 120°

5400000000 mN

Breaking loads P 150°

4800000000 mN

Breaking loads P 180°

6080000000 mN

Breaking loads axial P a

3840000000 mN

ASSOCIATED COMPONENTS - GENERAL

Bearing

23096

Fixing rings

2 x FR700x29.5x15

Labyrinth sealing TS

TS-530-510

Taconite Sealing TA

TA-530

End cover TE

TE-530
