PRODUCT DEFINITION

Brand

SNR

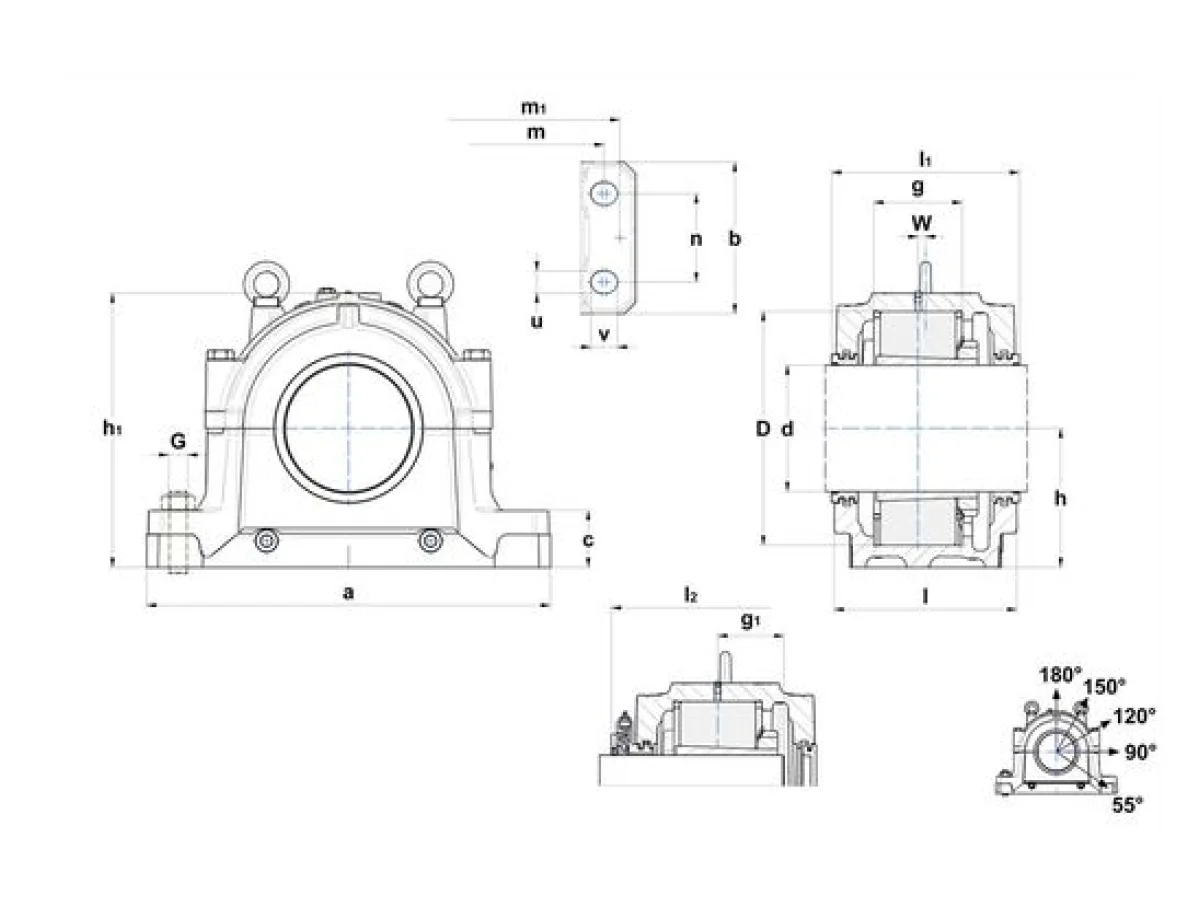

d - Shaft diameter

180 mm

a - Housing length

610 mm

b - Housing foot width

230 mm

c - Housing foot height

85 mm

g - Bearing seat width

132 mm

h - Bearing center height

210 mm

h1 - Housing height

411 mm

l - Housing mid width

280 mm

l1 - Width over TS

290 mm

l2 - Width over TA

351 mm

m - Mounting hole/punches distance (length)

510 mm

m1 - Distance punches dowel pins

560 mm

n - Mounting hole distance (width)

130 mm

u - Mounting hole (width)

35 mm

v - Mounting hole (length)

42 mm

D - Bearing seat diameter

340 mm

g1 - Distance small shaft shoulder to bearing center

107,5 mm

W - Bearing distance

10 mm

Housing weight

129 kg

Material of Housing

ductile cast

Initial grease quantity

4,3 l

BOLTS

G - Fixing bolts

M30

Recommended torque fixing bolts

1005 N-m

Connection bolts

M24x160

Recommended torque connection bolts

440 N-m

Eye bolt(s)

M20

Maximum loads 120°

800000000 mN

Maximum loads 150°

460000000 mN

Maximum loads 180°

400000000 mN

BREAKING LOADS

Breaking loads P 0°

4600000000 mN

Breaking loads P 55°

5700000000 mN

Breaking loads P 90°

2800000000 mN

Breaking loads P 120°

1900000000 mN

Breaking loads P 150°

1800000000 mN

Breaking loads P 180°

2300000000 mN

ASSOCIATED COMPONENTS - GENERAL

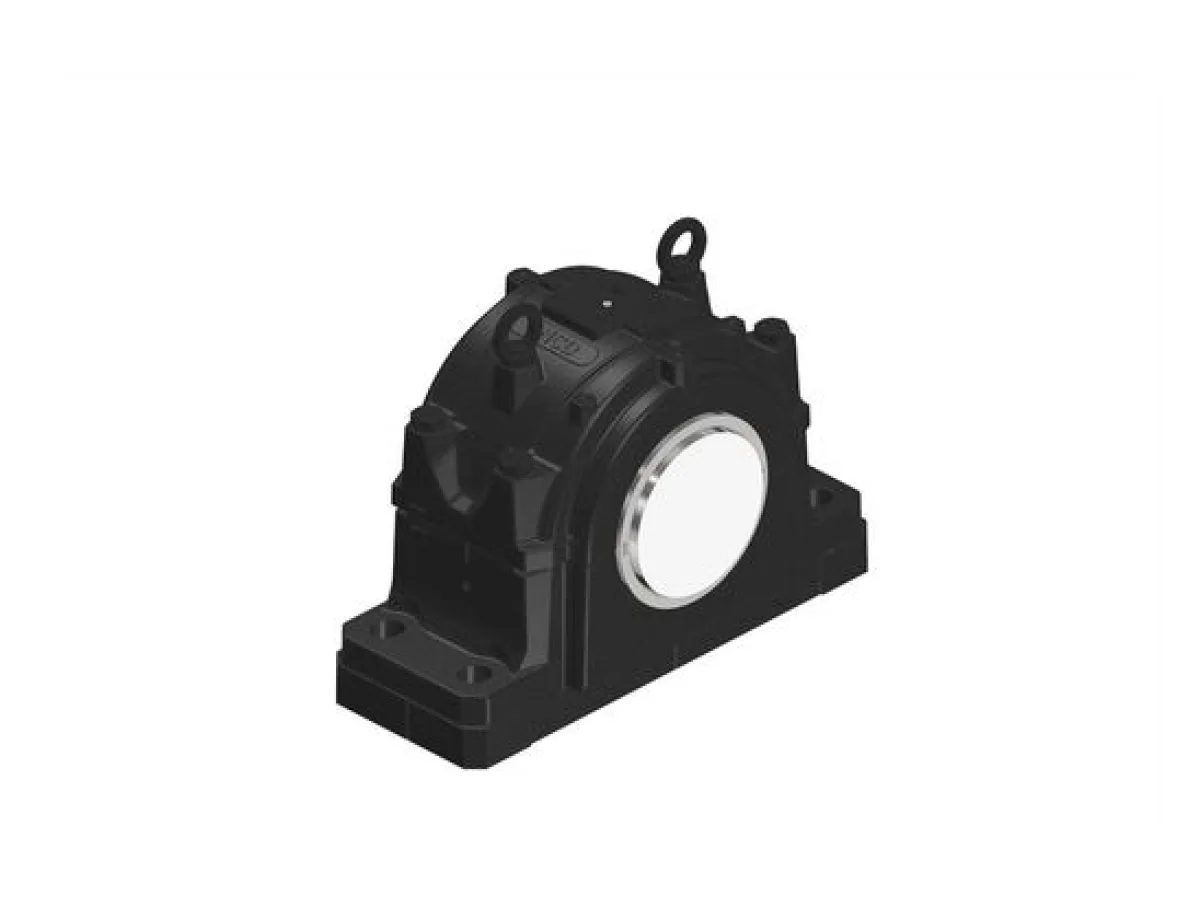

Designation of housing

SNCD3140

Bearing

23140K

Adapter sleeve

H3140

Fixing rings

2 x FR340x10x10

Labyrinth sealing TS

TS-40

Taconite Sealing TA

TA-40

End cover TE

TE-40
