ITEM NUMBER
21313V

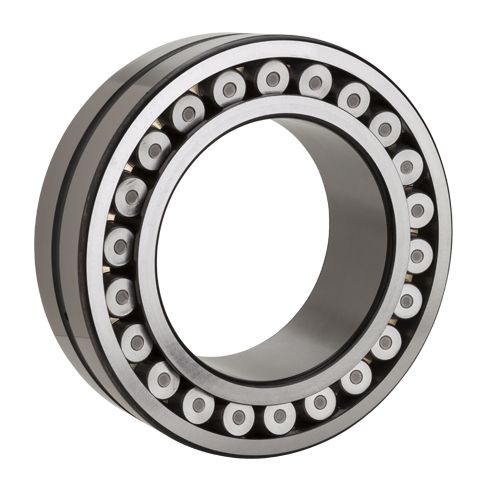

Spherical Roller Bearing w/ Standard Bore, 213 Series
d65,000 mmBore
D140,000 mmOutside diameter
B33,000 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for 21313V
Units
Technical Specifications
- Type
- Spherical Roller Bearing
- Bore Type
- Round
- Material
- Through Hardened Steel
- Cage Type
- Pressed
- Cage Material
- Steel
- e
- 0.23
- Y1
- 2.91
- Y2
- 4.33
- Y0
- 2.84
- Series
- 213
- Radial Internal Clearance
- CN
- Ring Modification
- Plain
- Tolerance
- JIS-0 RBEC-1
- Static Load Rating
- 215000 N 48500 lbf
- Dynamic Load Rating
- 224000 N 50500 lbf
- Enclosure
- Open
- Weight
- 2.410 kg 5.313 lb
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF

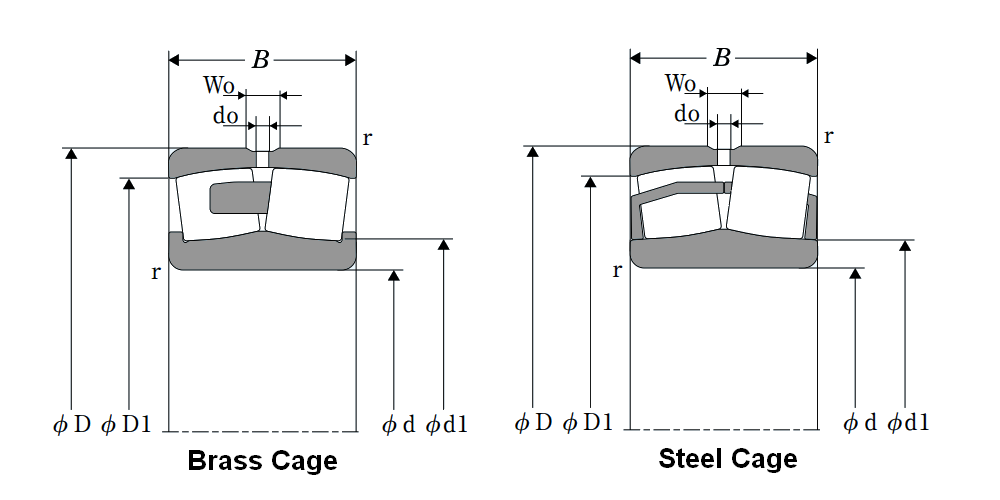

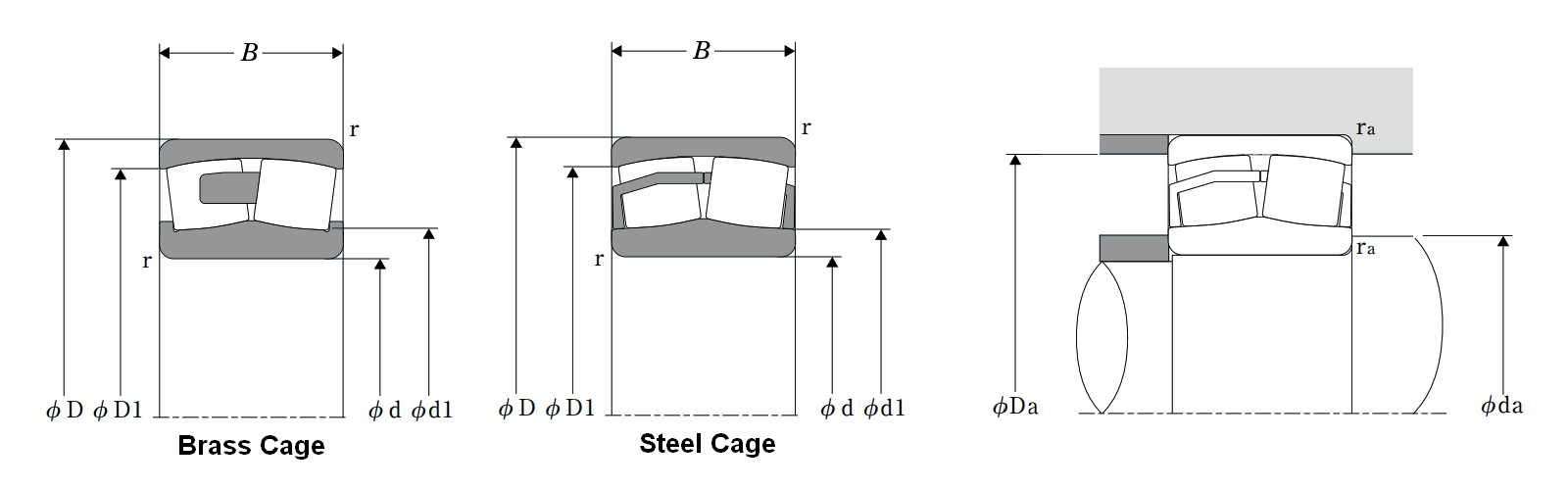

Dimensional Specifications
- d
- 65.000 mm 2.5591 in
- D
- 140.000 mm 5.5118 in
- B
- 33.000 mm 1.2992 in
- d1
- 85.000 mm 3.3465 in
- D1
- 120.000 mm 4.7244 in
- r
- 2.100 mm 0.0827 in
- da min
- 77.000 mm 3.0315 in
- Da max
- 128.000 mm 5.0394 in
- ras max
- 2.000 mm 0.0787 in
