ITEM NUMBER
22205EAC3
Spherical Roller Bearing w/ Standard Bore, 222 Series
d25,000 mmBore
D52,000 mmOutside diameter
B18,000 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for 22205EAC3
Units
Technical Specifications
- Type
- Spherical Roller Bearing
- Bore Type
- Round
- Material
- Through Hardened Steel
- Cage Type
- Pressed
- Cage Material
- Steel
- Limiting Speed - Oil
- 13000 RPM
- Limiting Speed - Grease
- 10400 RPM
- e
- 0.34
- Y1
- 2.00
- Y2
- 2.98
- Y0
- 1.96
- Series
- 222
- Radial Internal Clearance
- C3
- Ring Modification
- Plain
- Tolerance
- JIS-0 RBEC-1
- Static Load Rating
- 46100 N 10400 lbf
- Dynamic Load Rating
- 57200 N 12900 lbf
- Enclosure
- Open
- Weight
- 0.170 kg 0.375 lb
- Operating Temperature Range
- -40 to 200 ºC -40 to 400 ºF

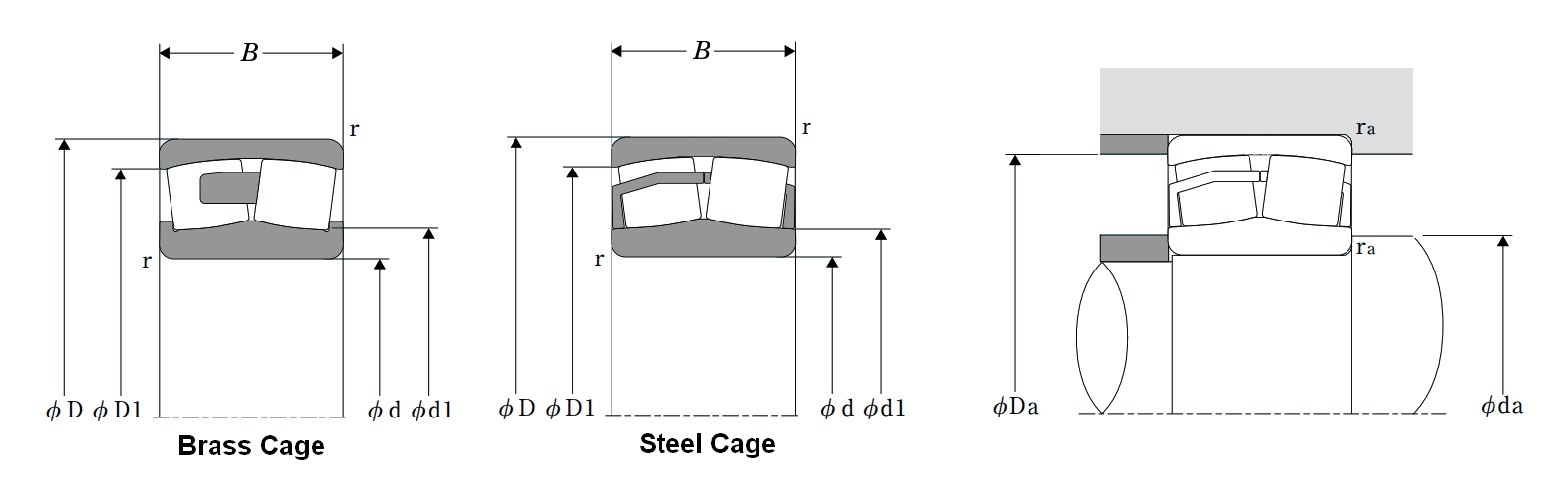

Dimensional Specifications
- d
- 25.000 mm 0.9843 in
- D
- 52.000 mm 2.0472 in
- B
- 18.000 mm 0.7087 in
- r
- 1.000 mm 0.0394 in
- da min
- 30.000 mm 1.1811 in
- Da max
- 46.000 mm 1.811 in
- ras max
- 1.000 mm 0.0394 in
