Shielded Spherical Roller Bearings – 22208EAKD1ZZC3

The image is shared by items with the same configuration; specifications on this page belong to this item.

NTNDouble Shielded

ITEM NUMBER

22208EAKD1ZZC3

Shielded Spherical Roller Bearings w/ Tapered Bore

d40,000 mmBore

D80,000 mmOutside diameter

B23,000 mmWidth

REQUEST A QUOTE Back to finder

Verified by Cat Son before quotationPart number · clearance · precision

infos@catson.com.vn

TECHNICAL DATA

Specifications for 22208EAKD1ZZC3

Units

Technical Specifications

Type: Spherical Roller Bearing
Bore Type: Tapered
Material: Through Hardened Steel
Cage Type: Pressed
Cage Material: Steel
Limiting Speed - Grease: 6800.0 RPM
Taper: 1:12
Shield Material: Steel
Precision Rating: Standard
Ring Modification: Relube
Configuration: One
Radial Internal Clearance: C3
Static Load Rating: 105000 N
Dynamic Load Rating: 116000 N
Enclosure: Double Shielded
Weight: 0.520 kg
Operating Temperature Range: -40 to 200 ºC

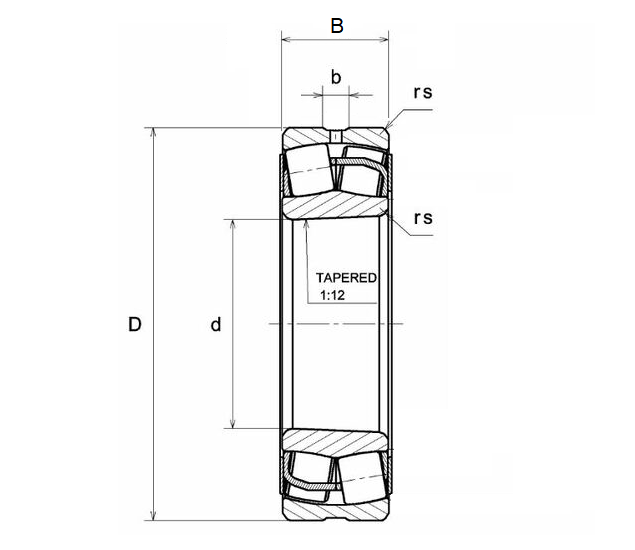

Dimensional Specifications

d: 40.000 mm
D: 80.000 mm
B: 23.000 mm
rs: 1.000 mm
b: 5.400 mm
