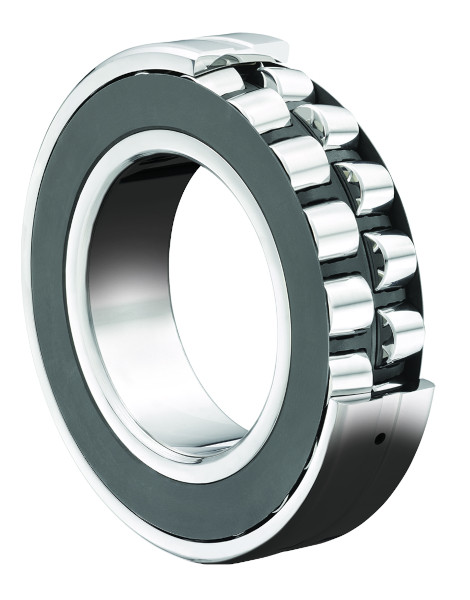

Shielded Spherical Roller Bearings – 22211EAD1ZZ

The image is shared by items with the same configuration; specifications on this page belong to this item.

NTNDouble Shielded

ITEM NUMBER

22211EAD1ZZ

Shielded Spherical Roller Bearings w/ Standard Bore

d55,000 mmBore

D100,000 mmOutside diameter

B25,000 mmWidth

REQUEST A QUOTE Back to finder

Verified by Cat Son before quotationPart number · clearance · precision

infos@catson.com.vn

TECHNICAL DATA

Specifications for 22211EAD1ZZ

Units

Technical Specifications

Type: Spherical Roller Bearing
Bore Type: Round
Material: Through Hardened Steel
Cage Type: Pressed
Cage Material: Steel
Limiting Speed - Grease: 8200 RPM
Shield Material: Steel
Precision Rating: Standard
Ring Modification: Relube
Configuration: One
Static Load Rating: 148000 N
Dynamic Load Rating: 155000 N
Enclosure: Double Shielded
Weight: 0.850 kg
Operating Temperature Range: -40 to 200 ºC

Dimensional Specifications

d: 55.000 mm
D: 100.000 mm
B: 25.000 mm
rs: 1.500 mm
b: 6.400 mm
