Single Direction Thrust Ball Bearings – 2901

The image is shared by items with the same configuration; specifications on this page belong to this item.

NTNOpen

ITEM NUMBER

2901

Single Direction Thrust Ball Bearings

d12,000 mmBore

D—Outside diameter

B—Width

REQUEST A QUOTE Back to finder

Verified by Cat Son before quotationPart number · clearance · precision

infos@catson.com.vn

TECHNICAL DATA

Specifications for 2901

Units

Technical Specifications

Type: Thrust Ball Bearing
Bore Type: Round
Outside Ring Type: Straight
Material: High Carbon Chrome Steel
Cage Type: Pressed
Cage Material: Steel
Ball Material: Steel
Precision: ISO Class 0
Configuration: One
Radial Internal Clearance: CN
Static Load Rating: 18900 N
Dynamic Load Rating: 13100 N
Enclosure: Open
Weight: 0.036 kg
Operating Temperature Range: -40 to 120 ºC

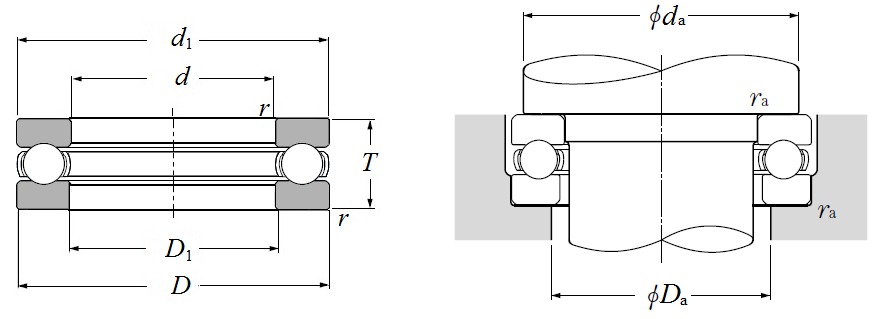

Dimensional Specifications

d: 12.000 mm
D1: 12.200 mm
d1: 28.000 mm
T: 12.000 mm
r: 0.600 mm
