ITEM NUMBER
5S-6004ZZP5
Single Row Radial Ball Bearing - Double Shielded
d20,000 mmBore
D42,000 mmOutside diameter
B12,000 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for 5S-6004ZZP5
Units
Technical Specifications
- Type
- Deep Groove Ball Bearing
- Bore Type
- Round
- Material
- High Carbon Chrome Steel
- Cage Type
- Pressed
- Cage Material
- Steel
- Ball Material
- Ceramic
- Limiting Speed - Grease
- 18000 RPM
- Precision
- ISO Class 5
- Configuration
- One
- Factor
- 13.9
- Radial Internal Clearance
- CN
- Static Load Rating
- 5050 N 1135 lbf
- Dynamic Load Rating
- 10400 N 2338 lbf
- Enclosure
- Double Shielded
- Weight
- 0.070 kg 0.154 lb
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF

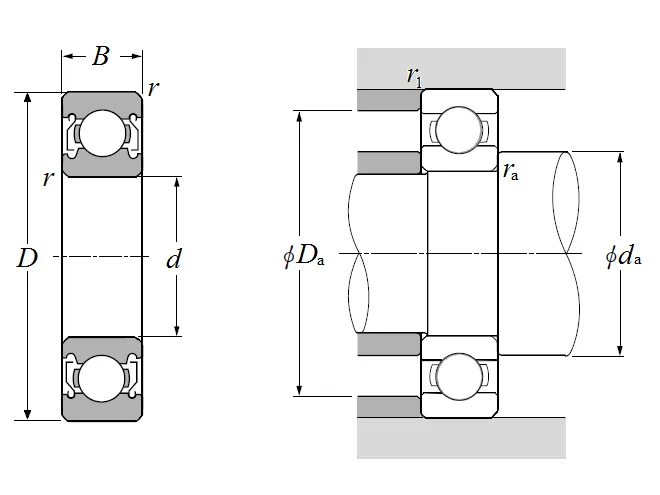

Dimensional Specifications
- d
- 20.000 mm 0.7870 in
- D
- 42.000 mm 1.6535 in
- B
- 12.000 mm 0.4724 in
- r
- 0.600 mm 0.0236 in
- r1
- 0.500 mm 0.0197 in
