ITEM NUMBER
7002

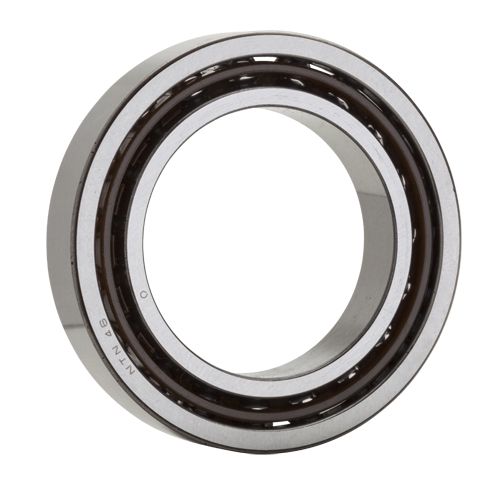

Single Angular Contact Ball Bearing - Open Type
d15,000 mmBore
D32,000 mmOutside diameter
B9,000 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for 7002
Units
Technical Specifications
- Type
- Angular Contact Ball Bearing
- Bore Type
- Round
- Material
- High Carbon Chrome Steel
- Cage Type
- Fiber Glass Reinforced
- Cage Material
- Nylon
- Ball Material
- Steel
- Limiting Speed - Oil
- 31000 RPM
- Limiting Speed - Grease
- 23000 RPM
- Precision
- ISO Class 0
- Configuration
- One
- Radial Internal Clearance
- CN
- Static Load Rating
- 3150 N 708 lbf
- Dynamic Load Rating
- 5800 N 1304 lbf
- Enclosure
- Open
- Weight
- 0.040 kg 0.095 lb
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF
Dimensional Specifications
- d
- 15.000 mm 0.5910 in
- D
- 32.000 mm 1.2598 in
- B
- 9.000 mm 0.3543 in
- r
- 0.300 mm 0.0118 in
- r1
- 0.150 mm 0.0059 in
- Contact Angle
- 30 º
- a (Load Center)
- 11.500 mm 0.4528 in
- da min
- 17.500 mm 0.6890 in
- Da max
- 29.500 mm 1.1614 in
- Db max
- 30.800 mm 1.2126 in
- ras max
- 0.300 mm 0.0118 in
- r1as max
- 0.150 mm 0.0059 in
- Double Row Width
- 18.000 mm 0.7087 in
- Triple Row Width
- 27.000 mm 1.0630 in
- Quadruple Row Width
- 40.000 mm 1.5748 in
