ITEM NUMBER
7002CVUJ84

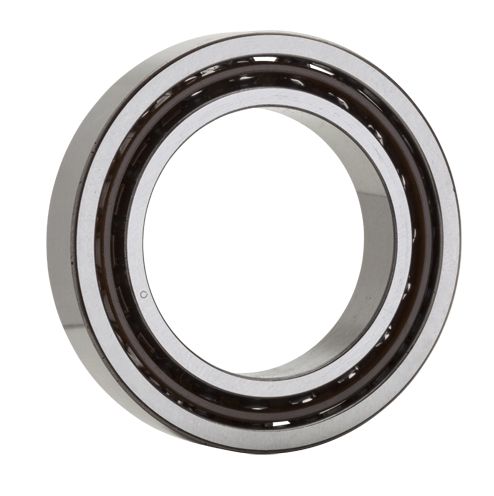

Single Angular Contact Ball Bearing, High Precision
d15,000 mmBore
D32,000 mmOutside diameter
B9,000 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for 7002CVUJ84
Units
Technical Specifications
- Type
- Angular Contact Ball Bearing
- Bore Type
- Round
- Material
- High Carbon Chrome Steel
- Cage Type
- Stratified
- Cage Material
- Phenolic
- Ball Material
- Steel
- Limiting Speed - Oil
- 72000 RPM
- Limiting Speed - Grease
- 46000 RPM
- Precision
- ISO Class 4
- Configuration
- One
- Preload
- Medium
- Static Load Rating
- 4000 N 900 lbf
- Dynamic Load Rating
- 7000 N 1575 lbf
- Enclosure
- Open
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF
Dimensional Specifications
- d
- 15.000 mm 0.5906 in
- D
- 32.000 mm 1.2598 in
- B
- 9.000 mm 0.3543 in
- r2 max
- 0.300 mm 0.0118 in
- r3 max
- 0.150 mm 0.0059 in
- Contact Angle
- 15 º
- a (Load Center)
- 8.000 mm 0.3150 in
- d2
- 20.200 mm 0.7953 in
- D1
- 26.900 mm 1.0591 in
- D4
- 28.200 mm 1.1102 in
- D5
- 0.8661 mm 0.0650 in
- E
- 22.000 mm 1.650 in
- Double Row Width
- 18.000 mm 0.7087 in
- Triple Row Width
- 27.000 mm 1.0630 in
- Quadruple Row Width
- 36.000 mm 1.4173 in
