The image is shared by items with the same configuration; specifications on this page belong to this item.
ITEM NUMBER
7E-HKS28X35X33

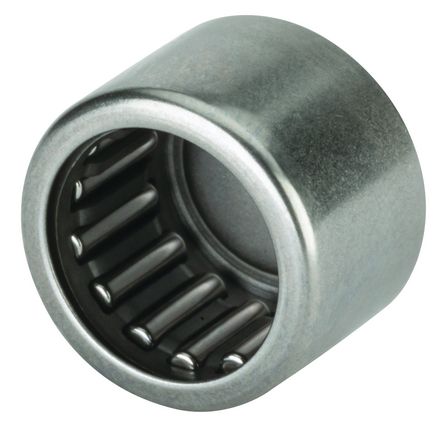

Drawn Cup Needle Roller Bearing - HK, HMK Type
d—Bore
D35,000 mmOutside diameter
B—Width
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for 7E-HKS28X35X33
Units
Technical Specifications
- Type
- Drawn Cup Needle Roller Bearing
- Bore Type
- Round
- Material
- Steel
- Cage Material
- Steel
- Bearing Type
- Needle Roller Bearing
- Configuration
- One
- Enclosure
- Open
- Radial Internal Clearance
- CN
- Precision
- ISO Class 0
- Oil Hole
- w/o Oil Hole
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF
Dimensional Specifications
- Fw
- 28.000 mm 1.1024 in
- D
- 35.000 mm 1.3780 in
- C
- 33.000 mm 1.2992 in
