ITEM NUMBER
AELFL210-115D1

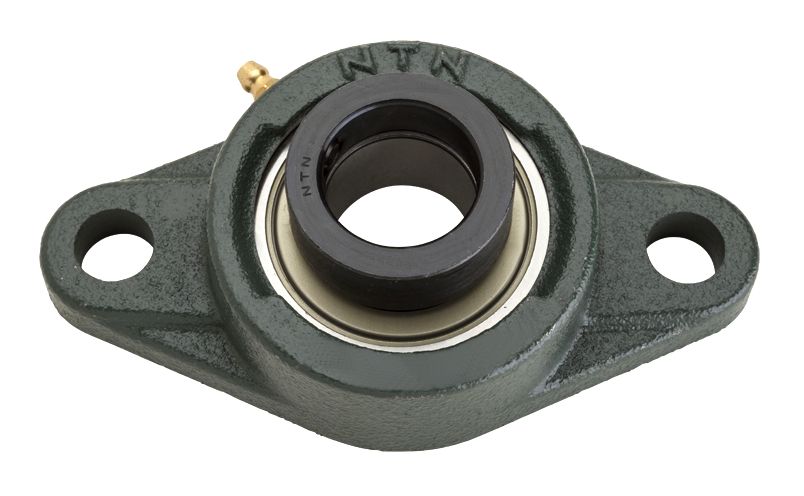

Two Bolt Rhombus Flanged Unit, Cast Housing, Eccentric Locking Collar, AELFL Type
d49,213 mmBore
D—Outside diameter
B—Width
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for AELFL210-115D1
Units
Technical Specifications
- Type
- 2-Bolt Rhombus Flanged Unit
- Bearing Type
- Ball Bearing
- Locking Device
- Eccentric Locking Collar
- Seal Type
- Contact
- Seal Material
- Nitrile Rubber
- Bearing Number
- AEL210-115D1
- Housing Number
- FL210D1
- Housing Material
- Cast Iron
- Housing Construction
- 1 Piece
- End Type
- Open
- Performance
- Light Duty
- Dynamic Load Rating
- 43500 N 9800 lbf
- Static Load Rating
- 23200 N 5200 lbf
- Rotational Speed [Max]
- 3100.0 RPM
- Weight
- 2.180 kg 4.800 lb
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF
- Lubrication
- Relubricatable
Dimensional Specifications
- d
- 49.213 mm 1.9375 in
- H
- 197.0 mm 7.7500 in
- L
- 115.0 mm 4.5312 in
- J
- 157.0 mm 6.1875 in
- A
- 40.0 mm 1.5625 in
- A0
- 55.000 mm 2.1575 in
- A1
- 16.0 mm 0.6250 in
- A2
- 22.0 mm 0.8594 in
- N
- 19.0 mm 0.7500 in
- B1
- 43.700 mm 1.7205 in
- S
- 11.000 mm 0.4331 in
- F
- 3.600 mm 0.1417 in
