Three Bolt Round Flange Unit, Pressed Steel Housing, Eccentric Locking Collar, AELPF/AELRPF Type – AELPF202

The image is shared by items with the same configuration; specifications on this page belong to this item.

NTNIndustrial bearing

ITEM NUMBER

AELPF202

Three Bolt Round Flange Unit, Pressed Steel Housing, Eccentric Locking Collar, AELPF Type

d15,000 mmBore

D—Outside diameter

B—Width

REQUEST A QUOTE Back to finder

Verified by Cat Son before quotationPart number · clearance · precision

infos@catson.com.vn

TECHNICAL DATA

Specifications for AELPF202

Units

Technical Specifications

Type: 3-Bolt Flanged Unit
Bearing Type: Ball Bearing
Locking Device: Eccentric Locking Collar
Seal Type: Contact
Seal Material: Nitrile Rubber
Bearing Number: AEL202
Housing Number: PF203
Housing Material: Steel
Housing Construction: 2 Piece
Number of Holes: 3
End Type: Open
Performance: Light Duty
Dynamic Load Rating: 9600 N
Static Load Rating: 4600 N
Rotational Speed [Max]: 10000.0 RPM
Weight: 0.200 kg
Operating Temperature Range: -40 to 120 ºC
Lubrication: Non-Relubricatable

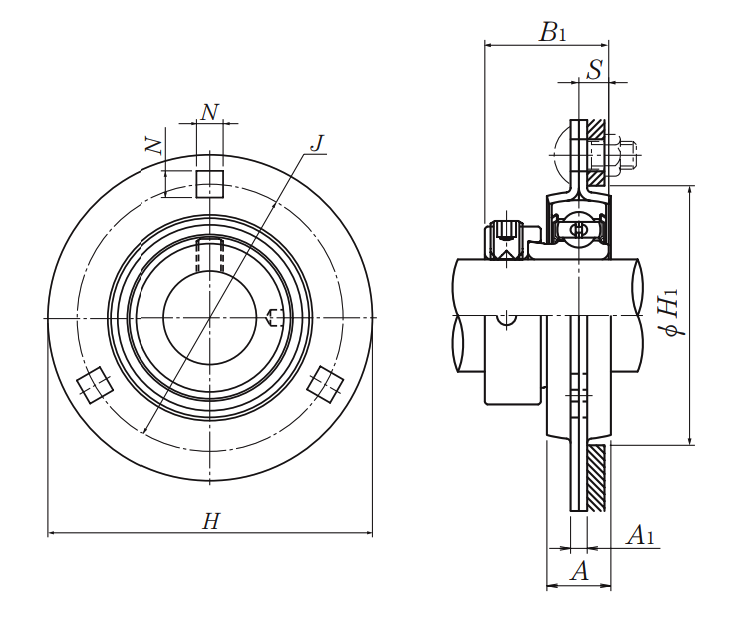

Dimensional Specifications

d: 15.000 mm
H: 81.0 mm
J: 63.5 mm
A: 14.0 mm
A1: 4.0 mm
N: 7.0 mm
B1: 28.600 mm
S: 6.500 mm
H1: 49.0 mm
