ANL40
Standard Locknut

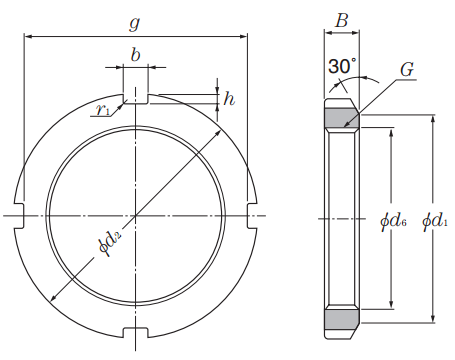

d—Bore
D—Outside diameter
B29,000 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for ANL40
Units
Technical Specifications
- Type
- Locknut
- Locking Type
- Locknut
- Material
- Steel
- Mating Lockwasher
- AWL40
- Grade
- Standard
- Bore No. of Adapter
- 40
- Weight
- 2.980 kg 6.570 lb
Dimensional Specifications
- Bore Size
- 200.000 mm 7.8740 in
- d2
- 240.000 mm 9.4488 in
- d1
- 218.000 mm 8.5827 in
- B
- 29.000 mm 1.1417 in
- G
- M200x3
- b
- 18.000 mm 0.7087 in
- h
- 8.000 mm 0.3150 in
- Number of Slots
- 4
- g
- 224.000 mm 8.8189 in
- d6
- 201.500 mm 7.9331 in
- r1 max
- 0.700 mm 0.0276 in
- Thread Pitch
- 3.000 mm 0.1181 in
