ITEM NUMBER
ANL48

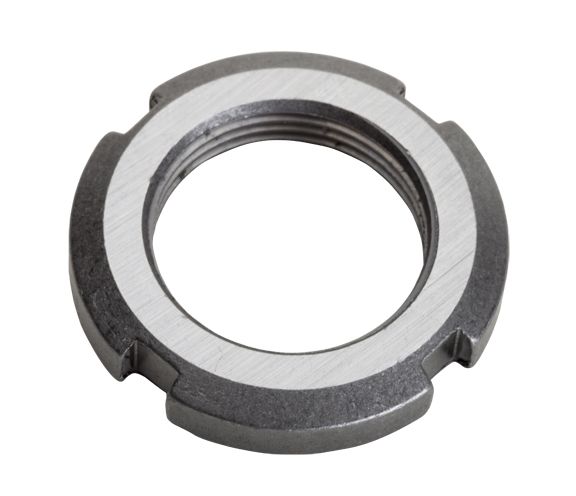

Locknut w/ Bolt Holes
d—Bore
D—Outside diameter
B34,000 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for ANL48
Units
Technical Specifications
- Type
- Locknut
- Locking Type
- Locknut
- Material
- Steel
- Mating Lockwasher
- AWL48
- Grade
- Standard
- Bore No. of Adapter
- 48
- Lockplate Number
- AL48
- Weight
- 5.160 kg 11.376 lb

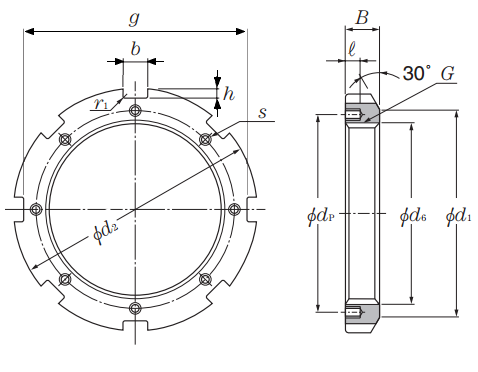

Dimensional Specifications
- Bore Size
- 240.000 mm 9.4488 in
- d2
- 290.000 mm 11.4173 in
- d1
- 270.000 mm 10.6299 in
- B
- 34.000 mm 1.3386 in
- G
- Tr240x4
- s
- M8x1.25
- b
- 20.000 mm 0.7874 in
- h
- 10.000 mm 0.3937 in
- Number of Slots
- 8
- g
- 270.000 mm 10.6299 in
- d6
- 242.000 mm 9.5276 in
- dp
- 253.000 mm 9.9606 in
- l
- 15.000 mm 0.5906 in
- r1 max
- 0.800 mm 0.0315 in
- Thread Pitch
- 4.000 mm 0.1575 in
