ITEM NUMBER
ARFLU-2S
Ultra-Class Two Bolt Flanged Unit, Set Screw, ARFLU Type
d50,800 mmBore
D—Outside diameter
B43,000 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for ARFLU-2S
Units
Technical Specifications
- Type
- 2-Bolt Rhombus Flanged Unit
- Bearing Type
- Ball Bearing
- Locking Device
- Set Screw
- Seal Type
- Contact
- Seal Material
- Nitrile Rubber
- Bearing Number
- A-AR210-200D1
- Housing Number
- FLU210D1V50
- Housing Material
- Cast Iron
- Housing Construction
- 1 Piece
- End Type
- Open
- Finish/Coating
- Black Oxide
- Performance
- Light Duty
- Dynamic Load Rating
- 35100 N 7891 lbf
- Static Load Rating
- 23100 N 5193 lbf
- Max Tightening Torque
- 69 lb·in
- Weight
- 2.310 kg 5.089 lb
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF
- Lubrication
- Outer Ring
Specifications
- Lubrication
- Outer Ring
- Ball Material
- Through Hardened
- Bore Type
- Cylindrical
- Outside Ring Width
- 15.000 mm 0.5910 in
- Inside Ring Width
- 27.000 mm 1.0630 in
- Clearance
- CN
- Cage Material
- Nylon
- Precision Rating
- ISO Class 0
- Radial Dynamic Load Rating
- 35100 N 7891 lbf
- Radial Static Load Rating
- 23100 N 5193 lbf
- Rotational Speed [Max]-Grease
- 2350 RPM

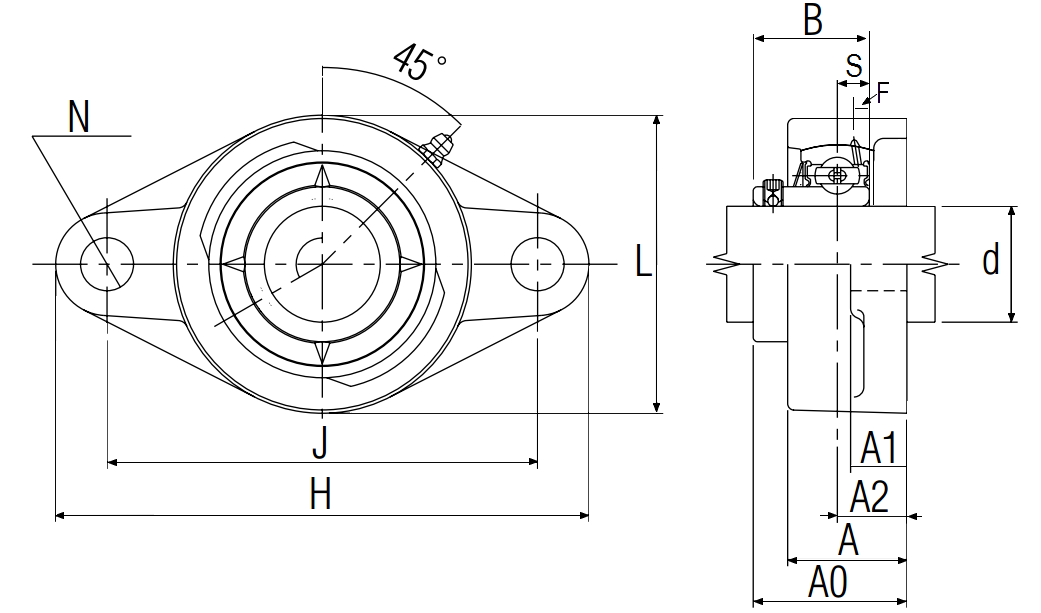

Dimensional Specifications
- d
- 50.800 mm 2 in
- H
- 189.7 mm 7.4688 in
- L
- 115.9 mm 4.5625 in
- J
- 157.2 mm 6.1875 in
- A
- 46.0 mm 1.8125 in
- A0
- 59.900 mm 2.3594 in
- A1
- 19.8 mm 0.7813 in
- A2
- 28.2 mm 1.1094 in
- N
- 17.1 mm 0.6719 in
- B
- 43.000 mm 1.6929 in
- S
- 10.998 mm 0.4330 in
- F
- 4.300 mm 0.1693 in
