Drawn-Cup-Needle-Roller-Bearing-BK-Type – BK2020C

The image is shared by items with the same configuration; specifications on this page belong to this item.

NTNClosed End

ITEM NUMBER

BK2020C

Drawn Cup Needle Roller Bearing - BK Type

d—Bore

D26,000 mmOutside diameter

B—Width

REQUEST A QUOTE Back to finder

Verified by Cat Son before quotationPart number · clearance · precision

infos@catson.com.vn

TECHNICAL DATA

Specifications for BK2020C

Units

Technical Specifications

Type: Drawn Cup Needle Roller Bearing
Bore Type: Round
Material: Steel
Cage Material: Steel
Limiting Speed - Oil: 12000 RPM
Limiting Speed - Grease: 8000 RPM
Bearing Type: Needle Roller Bearing
Configuration: One
Enclosure: Closed End
Radial Internal Clearance: CN
Precision: ISO Class 0
Oil Hole: w/o Oil Hole
Static Load Rating: 27100 N
Dynamic Load Rating: 16400 N
Weight: 0.027 kg
Operating Temperature Range: -40 to 120 ºC

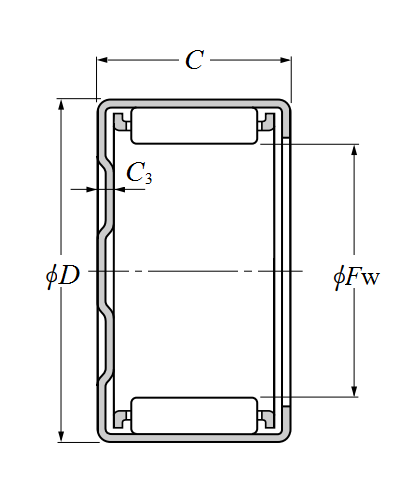

Dimensional Specifications

Fw: 20.000 mm
D: 26.000 mm
C: 20.000 mm
C3: 2.700 mm
