The image is shared by items with the same configuration; specifications on this page belong to this item.

NTNClosed End and Single Sealed

ITEM NUMBER

BK2518L

Drawn Cup Needle Roller Bearing - BK Type, Single Sealed

d—Bore

D32,000 mmOutside diameter

B—Width

REQUEST A QUOTE Back to finder

Verified by Cat Son before quotationPart number · clearance · precision

infos@catson.com.vn

TECHNICAL DATA

Specifications for BK2518L

Units

Technical Specifications

Type: Drawn Cup Needle Roller Bearing
Bore Type: Round
Material: Steel
Cage Material: Steel
Limiting Speed - Grease: 6500 RPM
Seal Material: Nitrile Rubber
Bearing Type: Needle Roller Bearing
Configuration: One
Enclosure: Closed End and Single Sealed
Radial Internal Clearance: CN
Precision: ISO Class 0
Oil Hole: w/o Oil Hole
Static Load Rating: 24000 N
Dynamic Load Rating: 15900 N
Weight: 0.035 kg
Operating Temperature Range: -40 to 120 ºC

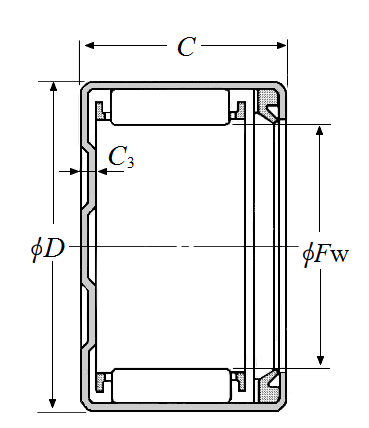

Dimensional Specifications

Fw: 25.000 mm
D: 32.000 mm
C: 18.000 mm
C3: 2.700 mm
