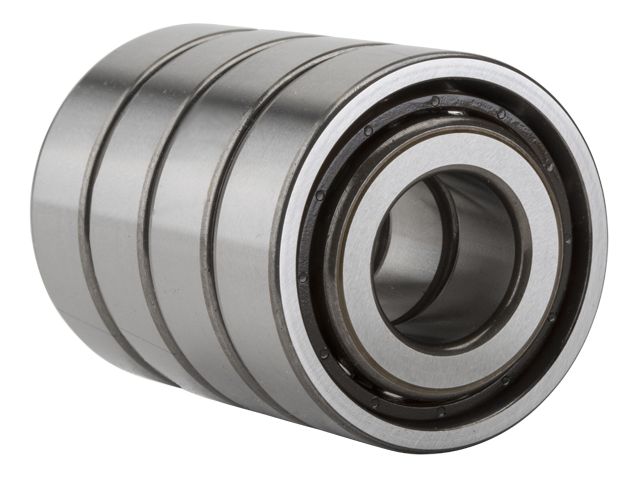

The image is shared by items with the same configuration; specifications on this page belong to this item.
ITEM NUMBER
BST20X47-1BLXLDTTT
Quadruple-Row Angular Contact Thrust Ball Bearing for Ball Screws - DTTT Arrangement, Double Sealed, Four Rows Bear Axial Load
d20,000 mmBore
D47,000 mmOutside diameter
B15,000 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for BST20X47-1BLXLDTTT
Units
Technical Specifications
- Type
- Ball Screw Support Bearing
- Material
- High Carbon Chrome Steel
- Cage Type
- Molded
- Cage Material
- Resin
- Seal Type
- Light Contact
- Seal Material
- Nitrile Rubber
- Configuration
- Four
- Static Load Rating
- 150000 N 33500 lbf
- Enclosure
- Double Sealed
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF
Dimensional Specifications
- d
- 20.000 mm 0.7874 in
- D
- 47.000 mm 1.8504 in
- B
- 15.000 mm 0.5906 in
- 4B
- 60.000 mm 2.3622 in
- d1
- 29.900 mm 1.1772 in
- d2
- 25.700 mm 1.0118 in
- D1
- 37.100 mm 1.4606 in
- D2
- 41.200 mm 1.6220 in
- r
- 1.000 mm 0.0394 in
- r1
- 0.600 mm 0.0236 in
- Contact Angle
- 60 º
