ITEM NUMBER
BST25X62-1BP4
Single Angular Contact Thrust Ball Bearing for Ball Screws - Open Type
d25,000 mmBore
D62,000 mmOutside diameter
B15,000 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for BST25X62-1BP4
Units
Technical Specifications
- Type
- Angular Contact Thrust Ball Bearing for Ball Screws
- Bore Type
- Round
- Material
- High Carbon Chrome Steel
- Cage Type
- Fiber Glass Reinforced
- Cage Material
- Nylon
- Ball Material
- Steel
- Space Capacity (Single Row)
- 4.600 cm³ 0.1811 in³
- Precision
- ISO Class 4
- Configuration
- One
- Preload
- Heavy
- Static Load Rating
- 59000 N 13300 lbf
- Dynamic Load Rating
- 29200 N 6550 lbf
- Enclosure
- Open
- Weight
- 0.235 kg 0.518 lb
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF

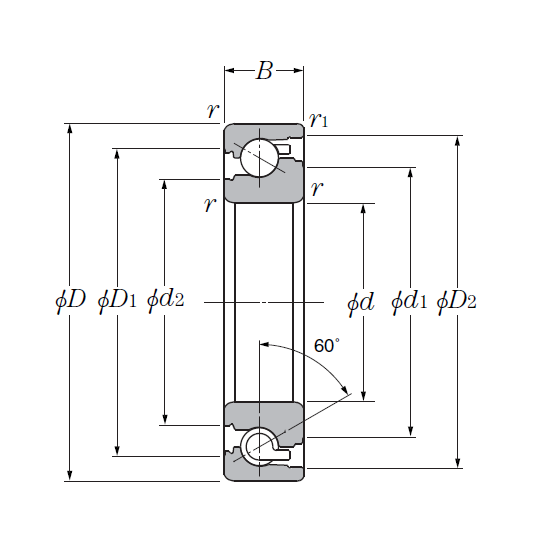

Dimensional Specifications
- d
- 25.000 mm 0.9843 in
- D
- 62.000 mm 2.4409 in
- B
- 15.000 mm 0.5906 in
- d1
- 44.400 mm 1.7480 in
- d2
- 40.200 mm 1.5827 in
- D1
- 51.600 mm 2.0315 in
- D2
- 55.700 mm 2.1929 in
- r
- 1.000 mm 0.0394 in
- r1
- 0.600 mm 0.0236 in
- Contact Angle
- 60 º
