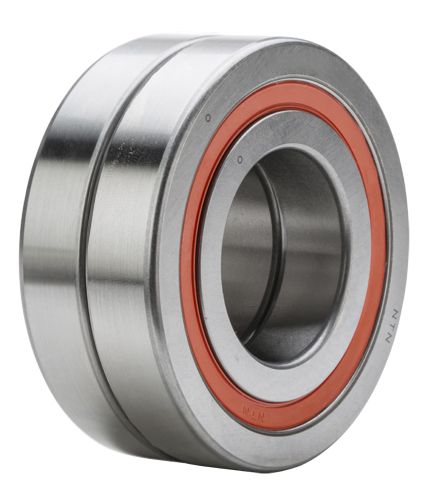

Duplex-Angular-Contact-Thrust-Ball-Bearing-for-Ball-Screws-Face-to-Face-Arrangement-Double-Sealed-One-Row-Bears-Axial-Load – BST40X72-1BLXLDF

The image is shared by items with the same configuration; specifications on this page belong to this item.

NTNDouble Sealed

ITEM NUMBER

BST40X72-1BLXLDF

Duplex Angular Contact Thrust Ball Bearing for Ball Screws - Face to Face Arrangement, Double Sealed, One Row Bears Axial Load

d40,000 mmBore

D72,000 mmOutside diameter

B15,000 mmWidth

REQUEST A QUOTE Back to finder

Verified by Cat Son before quotationPart number · clearance · precision

infos@catson.com.vn

TECHNICAL DATA

Specifications for BST40X72-1BLXLDF

Units

Technical Specifications

Type: Ball Screw Support Bearing
Bore Type: Round
Material: High Carbon Chrome Steel
Cage Type: Molded
Cage Material: Resin
Seal Type: Light Contact
Seal Material: Nitrile Rubber
Configuration: Two
Static Load Rating: 70000 N
Dynamic Load Rating: 31000 N
Enclosure: Double Sealed
Operating Temperature Range: -40 to 120 ºC

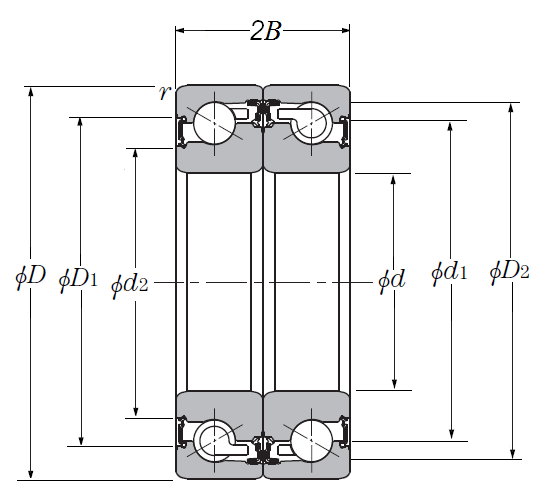

Dimensional Specifications

d: 40.000 mm
D: 72.000 mm
B: 15.000 mm
2B: 30.000 mm
d1: 52.400 mm
d2: 48.200 mm
D1: 59.600 mm
D2: 63.700 mm
r: 1.000 mm
r1: 0.600 mm
Contact Angle: 60 º
