Quadruple-Row-Angular-Contact-Thrust-Ball-Bearing-Ball-Screws-DTTT-Arrangement-Double-Sealed-Four-Rows-Bear-Axial-Load – BST55X100-1BLXLDTT

The image is shared by items with the same configuration; specifications on this page belong to this item.

NTNDouble Sealed

ITEM NUMBER

BST55X100-1BLXLDTT

Triple-Row Angular Contact Thrust Ball Bearing for Ball Screws - DTT Arrangement, Double Sealed, Three Rows Bear Axial Load

d55,000 mmBore

D100,000 mmOutside diameter

B20,000 mmWidth

REQUEST A QUOTE Back to finder

Verified by Cat Son before quotationPart number · clearance · precision

infos@catson.com.vn

TECHNICAL DATA

Specifications for BST55X100-1BLXLDTT

Units

Technical Specifications

Type: Ball Screw Support Bearing
Bore Type: Round
Material: High Carbon Chrome Steel
Cage Type: Molded
Cage Material: Resin
Seal Type: Light Contact
Seal Material: Nitrile Rubber
Configuration: Three
Static Load Rating: 459000 N
Dynamic Load Rating: 134000 N
Enclosure: Double Sealed
Operating Temperature Range: -40 to 120 ºC

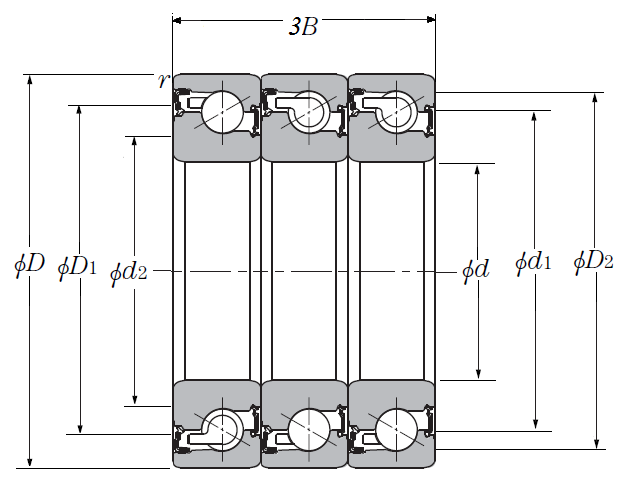

Dimensional Specifications

d: 55.000 mm
D: 100.000 mm
B: 20.000 mm
3B: 60.000 mm
d1: 75.800 mm
d2: 70.100 mm
D1: 86.200 mm
D2: 92.600 mm
r: 1.000 mm
r1: 0.600 mm
Contact Angle: 60 º
