ITEM NUMBER
C-UKF305D1-WHEN-USED-WITH-H2305X
Four Bolt Square Flanged Unit, Cast Housing, Adapter, Cast Dust Cover, Open End, UKF Type
d20,000 mmBore
D—Outside diameter
B—Width
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for C-UKF305D1-WHEN-USED-WITH-H2305X
Units
Technical Specifications
- Type
- 4-Bolt Square Flanged Unit
- Bearing Type
- Ball Bearing
- Locking Device
- Adapter
- Seal Type
- Contact
- Seal Material
- Nitrile Rubber
- Bearing Number
- UK305D1
- Housing Number
- F305D1
- Housing Material
- Cast Iron
- Housing Construction
- 1 Piece
- End Type
- Open
- Performance
- Heavy Duty
- Dynamic Load Rating
- 21200 N 4750 lbf
- Static Load Rating
- 10900 N 2450 lbf
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF
- Lubrication
- Relubricatable

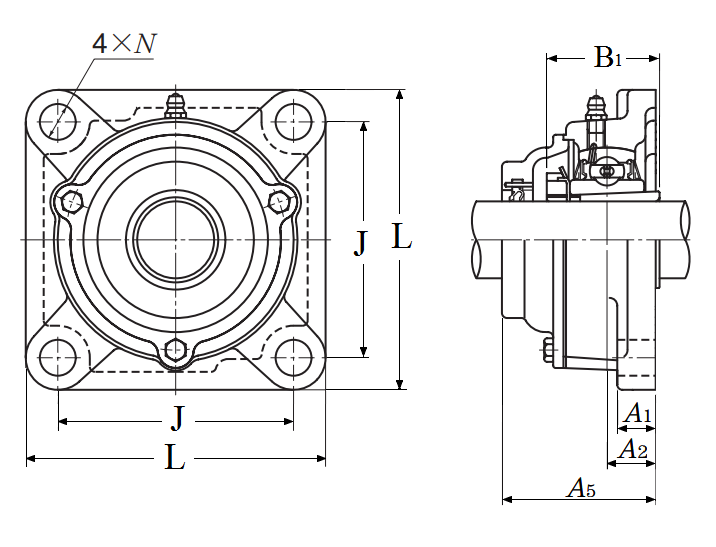

Dimensional Specifications
- d
- 20.000 mm 0.7874 in
- L
- 110.0 mm 4.3437 in
- J
- 80.0 mm 3.1563 in
- A1
- 13.0 mm 0.5000 in
- A2
- 16.0 mm 0.6250 in
- A5
- 56.000 mm 2.2187 in
- N
- 16.0 mm 0.6250 in
- B1
- 35.000 mm 1.3780 in
- F
- 5.000 mm 0.1969 in
- Notes
- Sales drawing reflects "Bore Size w/o Adapter". They do not show the "d"dimension, which is the bore size with adapter
