ITEM NUMBER
CM-SPAW2215-207N1
Sealed Spherical Pillow Blocks, Ductile End Cover, Open/Closed End, SPAW Type
d61,913 mmBore
D—Outside diameter
B—Width
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for CM-SPAW2215-207N1
Units
Technical Specifications
- Type
- Pillow Block Unit
- Bearing Type
- Spherical Roller Bearing
- Seal Material
- Nitrile Rubber
- Locking Device
- Adapter
- Bearing Number
- MX-W22215EALLKW33C3
- Housing Number
- SPA215N1
- Adapter Sleeve Number
- HA2315M1
- Housing Material
- Ductile Iron
- Housing Construction
- 1 Piece
- Mounting Type
- 2-Bolt
- Performance
- Heavy Duty
- End Type
- (1) Open & (1) Closed
- Dynamic Load Rating
- 244000 N 54854 lbf
- Static Load Rating
- 249000 N 55978 lbf
- Rotational Speed [Max]
- 2000.0 RPM
- Operating Temperature Range
- -40 to 200 ºC -40 to 400 ºF
- Lubrication
- Relubricatable
Guidelines for Mounting
- Axial Displacement - Min.
- 0.024 in
- Axial Displacement - Max.
- 0.030 in
- Recommended Locknut Rotation
- 120 º
- Hydraulic Pressure - Min.
- 1800 lb/in²
- Hydraulic Pressure - Max.
- 2250 lb/in²
Shaft Tolerance
- Shaft Tolerance
- nominal to -74 µm nominal to -.0029 in
Allowable Loads
- Allowable Loads - P60
- 21500 lb
- Allowable Loads - P90
- 13000 lb
- Allowable Loads - P120
- 10000 lb
- Allowable Loads - P150
- 9000 lb
- Allowable Loads - P180
- 11000 lb

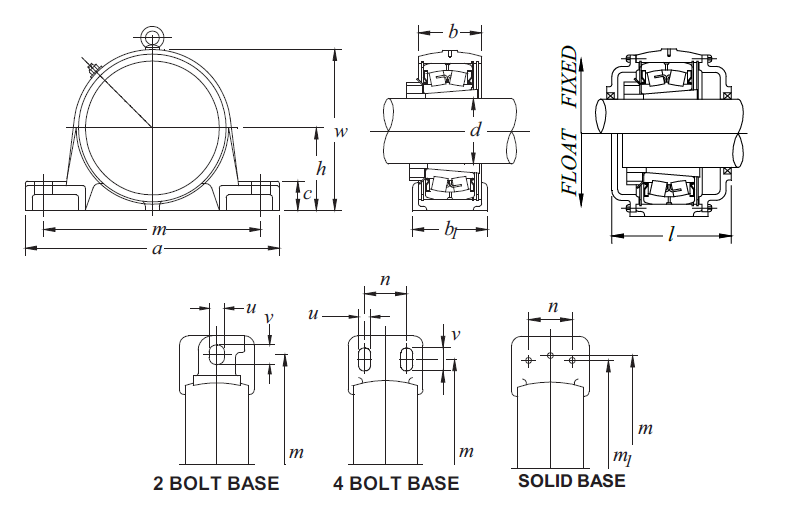

Dimensional Specifications
- d
- 61.913 mm 2.4380 in
- h
- 82.6 mm 3.2500 in
- a
- 280.0 mm 11.0240 in
- b
- 72.0 mm 2.8350 in
- b1
- 79.0 mm 3.1100 in
- c
- 33.0 mm 1.2990 in
- l
- 123.012 mm 4.8430 in
- m
- 231.8 mm 9.1250 in
- w
- 166.0 mm 6.5350 in
- u
- 18.0 mm 0.7090 in
- v
- 28.6 mm 1.1250 in
