ITEM NUMBER
CM-UCT207-106D1
Take-Up Unit, Cast Housing, Set Screw, Cast Dust Cover, Closed End, UCT Type
d34,925 mmBore
D—Outside diameter
B42,900 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for CM-UCT207-106D1
Units
Technical Specifications
- Type
- Take-Up Unit
- Bearing Type
- Ball Bearing
- Locking Device
- Set Screw
- Seal Type
- Contact
- Seal Material
- Nitrile Rubber
- Bearing Number
- UC207-106D1
- Housing Number
- CM-T207D1
- Housing Material
- Cast Iron
- Performance
- Light Duty
- Dynamic Load Rating
- 25700 N 5800 lbf
- Static Load Rating
- 15300 N 3450 lbf
- Rotational Speed [Max]
- 4200 RPM
- Weight
- 2.100 kg 4.600 lb
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF
- Lubrication
- Relubricatable

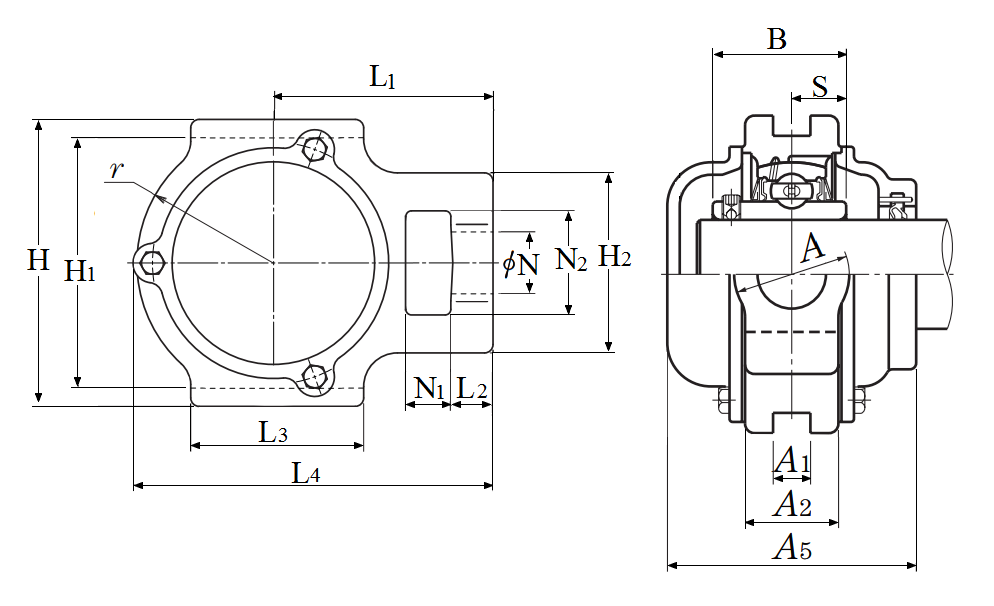

Dimensional Specifications
- d
- 34.925 mm 1.3750 in
- L
- 129.0 mm 5.0937 in
- H
- 102.0 mm 4.0313 in
- A5
- 80.000 mm 3.1562 in
- H1
- 89.0 mm 3.5039 in
- H2
- 64.0 mm 2.5312 in
- L1
- 78.0 mm 3.0625 in
- L2
- 15.0 mm 0.5937 in
- L3
- 64.0 mm 2.5312 in
- N
- 22.0 mm 0.8750 in
- N1
- 16.0 mm 0.6250 in
- N2
- 37.0 mm 1.4687 in
- A
- 37.0 mm 1.4687 in
- A1
- 12.0 mm 0.4724 in
- A2
- 30.0 mm 1.1875 in
- r
- 51.0 mm 2.0000 in
- B
- 42.900 mm 1.6890 in
- S
- 17.500 mm 0.6890 in
- F
- 4.600 mm 0.1811 in
