The image is shared by items with the same configuration; specifications on this page belong to this item.

NTNOpen

ITEM NUMBER

DCL107

Drawn Cup Needle Roller Bearing - DCL Type

d—Bore

D20,638 mmOutside diameter

B—Width

REQUEST A QUOTE Back to finder

Verified by Cat Son before quotationPart number · clearance · precision

infos@catson.com.vn

TECHNICAL DATA

Specifications for DCL107

Units

Technical Specifications

Type: Drawn Cup Needle Roller Bearing
Bore Type: Round
Material: Steel
Cage Material: Steel
Limiting Speed - Oil: 15000 RPM
Limiting Speed - Grease: 10000 RPM
Bearing Type: Needle Roller Bearing
Configuration: One
Enclosure: Open
Radial Internal Clearance: CN
Precision: ISO Class 0
Oil Hole: w/o Oil Hole
Static Load Rating: 9000 N
Dynamic Load Rating: 6650 N
Operating Temperature Range: -40 to 120 ºC

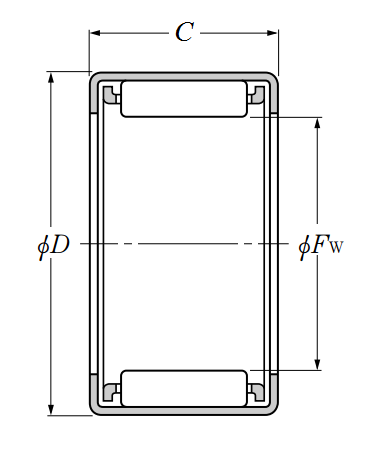

Dimensional Specifications

Fw: 15.875 mm
D: 20.638 mm
C: 11.113 mm
