ITEM NUMBER
DS208TT12A
Heavy Duty Disc Bearing - Square Bore, Spherical O.D., Type 4
d31,400 mmBore
D87,338 mmOutside diameter
B36,500 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for DS208TT12A
Units
Technical Specifications
- Type
- Heavy Duty Disc Bearing
- Bore Type
- Square
- Outside Ring Type
- Spherical
- Material
- Through Hardened Steel
- Cage Type
- Pressed
- Cage Material
- Steel
- Ball Material
- Steel
- Seal Type
- Contact
- Seal Material
- Nitrile Rubber
- Precision
- Not Available
- Configuration
- One
- Radial Internal Clearance
- CN
- Lubrication
- Non-Relubricatable
- Static Load Rating
- 17800 N 4002 lbf
- Dynamic Load Rating
- 29100 N 6542 lbf
- Enclosure
- Double Sealed
- Weight
- 0.910 kg 1.998 lb
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF
Specifications
- Ball Material
- Through Hardened
- Radial Dynamic Load Rating
- 29100 N 6542 lbf
- Radial Static Load Rating
- 17800 N 4002 lbf

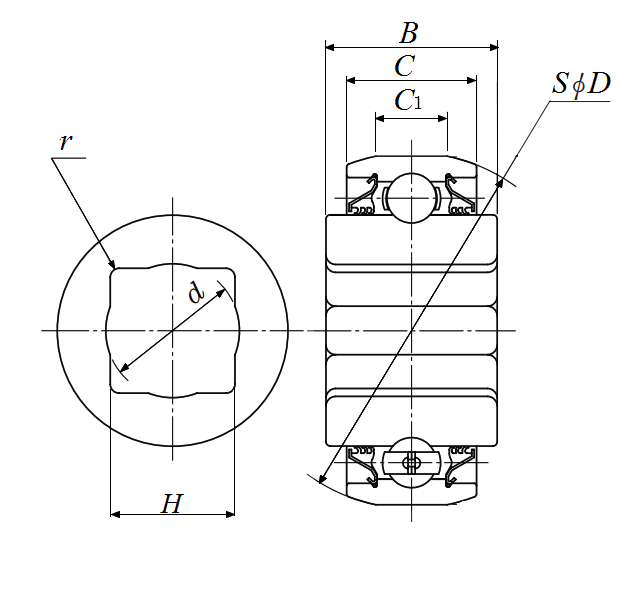

Dimensional Specifications
- H
- 29.972 mm 1.1800 in
- D
- 87.338 mm 3.4385 in
- C
- 30.200 mm 1.1890 in
- B
- 36.500 mm 1.4370 in
- d
- 31.400 mm 1.2362 in
- r
- 2.250 mm 0.0886 in
- C1
- 16.600 mm 0.6535 in
- D - Tolerance
- 0/-0.025 mm 0/-0.0010 in
- H - Tolerance
- 0.127/-0.127 mm 0.0050/-0.0050 in
- C - Tolerance
- 0/-0.120 mm 0/-0.0047 in
- B - Tolerance
- 0/-0.120 mm 0/-0.0047 in
- Shaft Size
- 28.575 mm 1.1250 in
