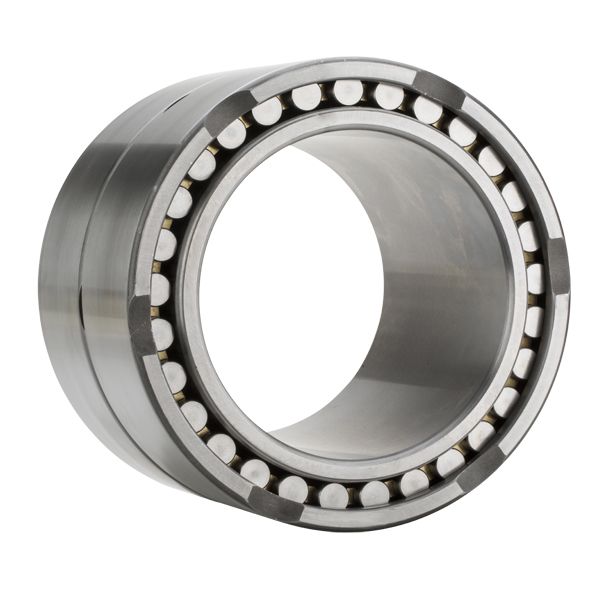

Quadruple Row Cylindrical Roller Bearings – E-4R13005

The image is shared by items with the same configuration; specifications on this page belong to this item.

NTNOpen

ITEM NUMBER

E-4R13005

Four-Row Cylindrical Roller Bearing w/ Hollow Rollers & Pin Type Cage

d650,000 mmBore

D920,000 mmOutside diameter

B—Width

REQUEST A QUOTE Back to finder

Verified by Cat Son before quotationPart number · clearance · precision

infos@catson.com.vn

TECHNICAL DATA

Specifications for E-4R13005

Units

Technical Specifications

Type: Cylindrical Roller Bearing
Bore Type: Round
Material: Case Carburized Steel
Cage Material: Pin Type Cage
Precision: ISO Class 0 (RBEC 1)
Configuration: Four
Tolerance: ISO Class 0 (RBEC 1)
Oil Hole: w/o Oil Hole
Radial Internal Clearance: CN
Static Load Rating: 46000000 N
Dynamic Load Rating: 14600000 N
Enclosure: Open
Weight: 1500.000 kg
Operating Temperature Range: -40 to 120 ºC

Dimensional Specifications

d: 650.000 mm
D: 920.000 mm
B1: 670.000 mm
C1: 670.000 mm
Fw: 723.000 mm
r: 7.500 mm
r1: 4.000 mm
