ITEM NUMBER
EPB2-203

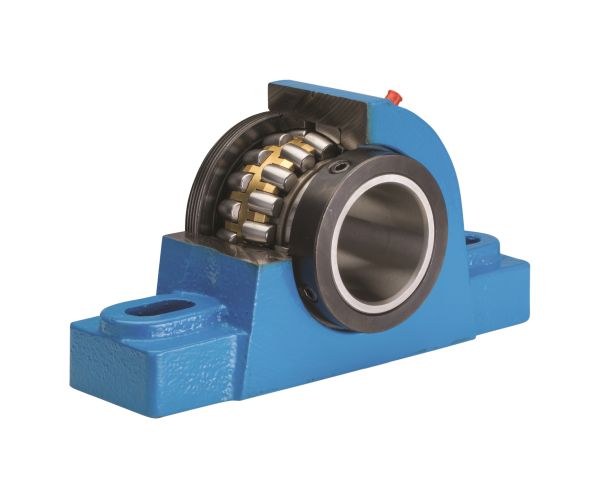

Pillow Block Roller Bearing Unit - 2.1875 in Bore Dia., Two-Bolt Base, Solid Pillow Block, Cast Iron Material, Non-Expansion Bearing (Fixed)
d55,563 mmBore
D—Outside diameter
B244,500 mmWidth
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for EPB2-203
Units
Technical Specifications
- Type
- Pillow Block Unit
- Bearing Type
- Spherical Roller Bearing
- Locking Device
- Set Screw
- Seal Type
- Contact
- Seal Material
- Nitrile Rubber
- Housing Material
- Cast Iron
- Housing Construction
- 1 Piece
- End Type
- Open
- Expansion Type
- Non-Expansion Bearing (Fixed)
- Mounting Type
- 2-Bolt
- Bore Type
- Cylindrical
- Cage Material
- Brass/Bronze
- Clearance
- C3
- Dynamic Load Rating
- 150000 N 33722 lbf
- Rotational Speed [Max]
- 2200.0 RPM
- Weight
- 8.620 kg 19.003 lb
- Operating Temperature Range
- -40 to 200 ºC -40 to 400 ºF
- Lubrication
- Relubricatable

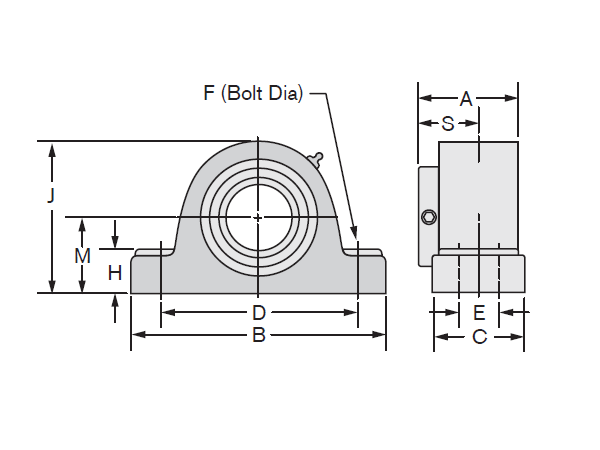

Dimensional Specifications
- d
- 55.563 mm 2.1880 in
- B
- 244.5 mm 9.6250 in
- M
- 63.5 mm 2.5000 in
- J
- 127.0 mm 5.0000 in
- C
- 66.7 mm 2.6250 in
- H
- 39.7 mm 1.5625 in
- D min
- 168.3 mm 6.625 in
- D max
- 204.8 mm 8.0625 in
- A
- 85.7 mm 3.3750 in
- S
- 52.4 mm 2.0625 in
- F
- 5/8
