Drawn-Cup-Needle-Roller-Bearing-HCK-Type – HCK1319VN

The image is shared by items with the same configuration; specifications on this page belong to this item.

NTNClosed End

ITEM NUMBER

HCK1319VN

Drawn Cup Needle Roller Bearing - HCK Type

d—Bore

D19,000 mmOutside diameter

B—Width

REQUEST A QUOTE Back to finder

Verified by Cat Son before quotationPart number · clearance · precision

infos@catson.com.vn

TECHNICAL DATA

Specifications for HCK1319VN

Units

Technical Specifications

Type: Drawn Cup Needle Roller Bearing
Bore Type: Round
Material: Steel
Bearing Type: Needle Roller Bearing
Configuration: One
Enclosure: Closed End
Radial Internal Clearance: CN
Precision: ISO Class 0
Oil Hole: w/o Oil Hole
Static Load Rating: 15000 N
Dynamic Load Rating: 10000 N
Weight: 0.013 kg
Operating Temperature Range: -40 to 120 ºC

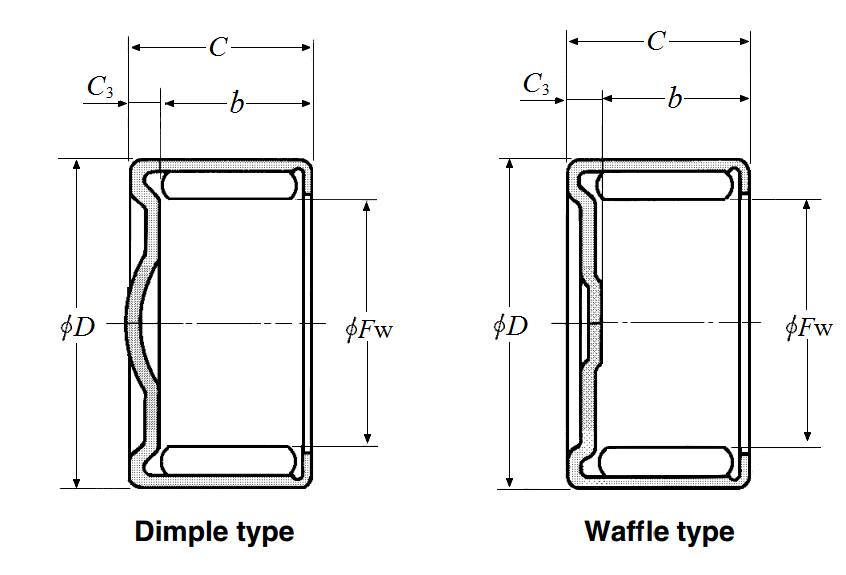

Dimensional Specifications

Fw: 13.000 mm
D: 19.000 mm
C: 11.850 mm
C3: 2.250 mm
