ITEM NUMBER
HPC100TR
Adapter Bearing - HP Type, Hex Bore, Cylindrical O.D.
d26,000 mmBore
D62,000 mmOutside diameter
B—Width
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for HPC100TR
Units
Technical Specifications
- Type
- Heavy Duty Disc Bearings
- Bore Type
- Hex
- Outside Ring Type
- Cylindrical
- Material
- Through Hardened Steel
- Cage Type
- Pressed
- Cage Material
- Steel
- Ball Material
- Steel
- Seal Type
- Contact
- Seal Material
- Nitrile Rubber
- Precision Rating
- ISO Class 0
- Configuration
- One
- Lubrication
- Outer Ring
- Clearance
- C3
- Static Load Rating
- 11300 N 2540 lbf
- Dynamic Load Rating
- 19500 N 4384 lbf
- Enclosure
- Double Sealed
- Weight
- 0.360 kg 0.794 lb
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF
Specifications
- Ball Material
- Through Hardened
- Lubrication
- Outer Ring
- Radial Dynamic Load Rating
- 19500 N 4384 lbf
- Radial Static Load Rating
- 11300 N 2540 lbf

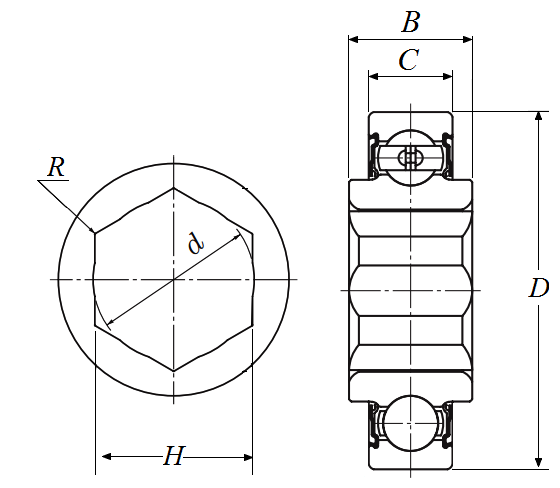

Dimensional Specifications
- H (0.0050/0)
- 29.234 mm 1.1510 in
- D
- 62.000 mm 2.4409 in
- C (0/-0.0047)
- 18.000 mm 0.7087 in
- B (0/-0.0047)
- 24.000 mm 0.9449 in
- d
- 26.000 mm 1.0236 in
- R
- 1.000 mm 0.0394 in
- Shaft Size
- 25.400 mm 1.0000 in
