ITEM NUMBER
HPS104TR
Adapter Bearing - HP Type, Hex Bore, Spherical O.D.
d32,512 mmBore
D80,000 mmOutside diameter
B—Width
Verified by Cat Son before quotationPart number · clearance · precision
infos@catson.com.vn
TECHNICAL DATA
Specifications for HPS104TR
Units
Technical Specifications
- Type
- Heavy Duty Disc Bearing
- Bore Type
- Hex
- Outside Ring Type
- Spherical
- Material
- Through Hardened Steel
- Cage Type
- Pressed
- Cage Material
- Steel
- Ball Material
- Steel
- Seal Type
- Contact
- Seal Material
- Nitrile Rubber
- Precision Rating
- ISO Class 0
- Configuration
- One
- Lubrication
- Outer Ring
- Clearance
- C3
- Static Load Rating
- 17800 N 4002 lbf
- Dynamic Load Rating
- 29100 N 6542 lbf
- Enclosure
- Double Sealed
- Weight
- 0.670 kg 1.477 lb
- Operating Temperature Range
- -40 to 120 ºC -40 to 250 ºF
Specifications
- Ball Material
- Through Hardened
- Lubrication
- Outer Ring
- Radial Dynamic Load Rating
- 29100 N 6542 lbf
- Radial Static Load Rating
- 17800 N 4002 lbf

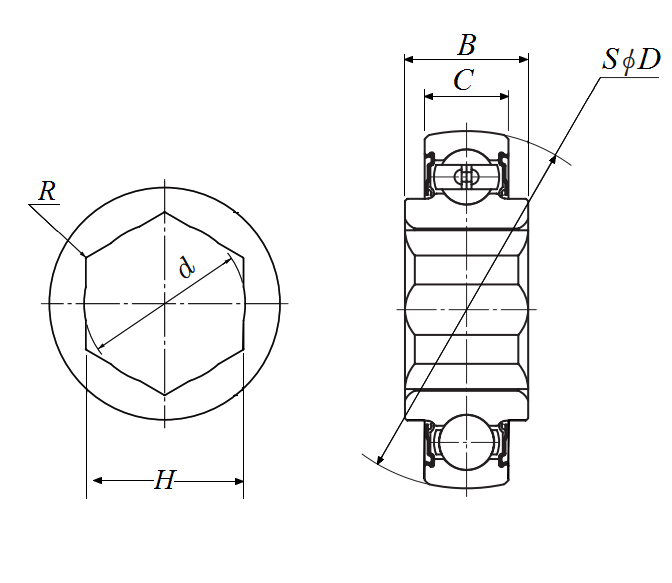

Dimensional Specifications
- H (0.0050/0)
- 36.614 mm 1.4410 in
- D
- 80.000 mm 3.1496 in
- C (0/-0.0047)
- 22.000 mm 0.8661 in
- B (0/-0.0047)
- 36.513 mm 1.4375 in
- d
- 32.512 mm 1.2800 in
- R
- 0.250 mm 0.0098 in
- Shaft Size
- 31.775 mm 1.2510 in
