Bearing-Insert-Wide-Inner-Ring-Cylindrical-O.D – JLS206-104C3

The image is shared by items with the same configuration; specifications on this page belong to this item.

NTNDouble Sealed

ITEM NUMBER

JLS206-104C3

Bearing Insert w/ Wide Inner Ring - Cylindrical O.D.

d31,750 mmBore

D62,000 mmOutside diameter

B23,800 mmWidth

REQUEST A QUOTE Back to finder

Verified by Cat Son before quotationPart number · clearance · precision

infos@catson.com.vn

TECHNICAL DATA

Specifications for JLS206-104C3

Units

Technical Specifications

Type: Insert Bearing
Bore Type: Round
Bearing Type: Ball Bearing
Material: Through Hardened Steel
Ball Material: Steel
Seal Type: Contact
Seal Material: Nitrile Rubber
Performance: Standard Duty
Lubrication: Non-Relubricatable
Radial Internal Clearance: C3
Static Load Rating: 11300 N
Dynamic Load Rating: 19500 N
Enclosure: Double Sealed
Weight: 0.318 kg
Operating Temperature Range: -40 to 120 ºC

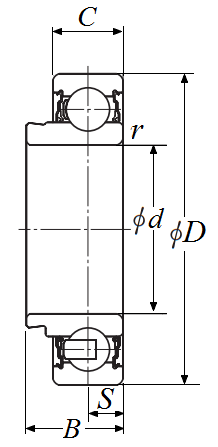

Dimensional Specifications

d: 31.750 mm
D: 62.000 mm
C: 18.000 mm
B: 23.800 mm
B1: 35.700 mm
r: 1.000 mm
S: 9.000 mm
r1: 1.000 mm
