Sealed-Duplex-Angular-Contact-Ball-Bearing-High-Precision-MLE-Type – MLECH7005CVDUJ74S

The image is shared by items with the same configuration; specifications on this page belong to this item.

NTNDouble Sealed

ITEM NUMBER

MLECH7005CVDUJ74S

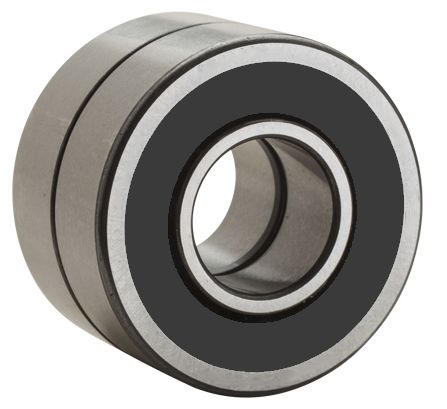

Sealed Duplex Hybrid Angular Contact Ball Bearing, High Precision

d25,000 mmBore

D47,000 mmOutside diameter

B12,000 mmWidth

REQUEST A QUOTE Back to finder

Verified by Cat Son before quotationPart number · clearance · precision

infos@catson.com.vn

TECHNICAL DATA

Specifications for MLECH7005CVDUJ74S

Units

Technical Specifications

Type: Hybrid Angular Contact Ball Bearing
Bore Type: Round
Material: High Carbon Chrome Steel
Cage Type: Stratified
Cage Material: Phenolic
Ball Material: Ceramic
Seal Type: Non-Contact
Seal Material: Nitrile Rubber
Precision: ISO Class 4
Configuration: Two
Enclosure: Double Sealed
Operating Temperature Range: -40 to 120 ºC

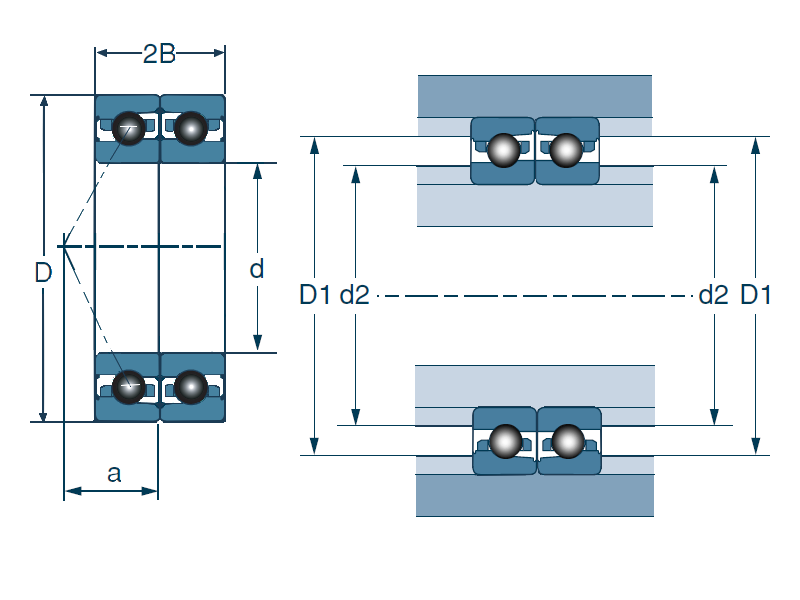

Dimensional Specifications

d: 25.000 mm
D: 47.000 mm
B: 12.000 mm
2B: 12.000 mm
r2 max: 0.600 mm
r3 max: 0.300 mm
Contact Angle: 17 º
d2: 30.900 mm
d3: 32.200 mm
D1: 39.900 mm
D4: 41.300 mm
